PanelView Plus 7 Series Accessory 12.1"
SKU: 2711P-RAAT12
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

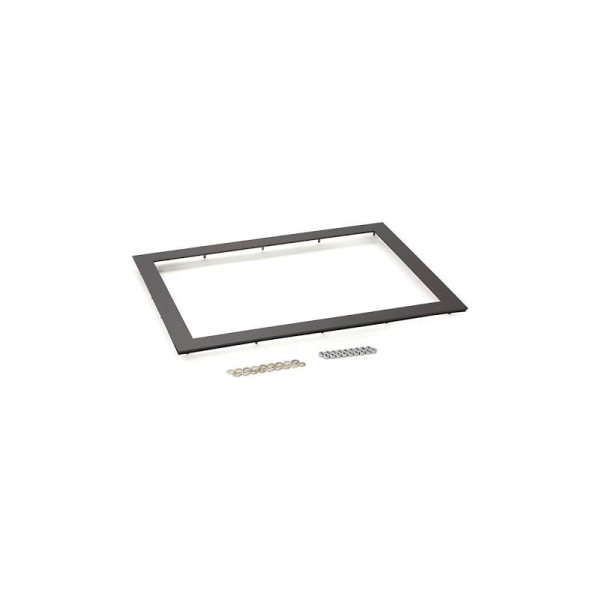

PanelView Plus 7 Series Accessory is an adapter plate kit that allows you to retrofit a PanelView Plus 7 Performance 12.1-inch touchscreen terminal into an existing cutout built for a PanelView Plus 6 1250 or PanelView Standard 1000 touchscreen terminal.
This kit simplifies the upgrade process while retaining the integrity of the panel.
Buy currently uses Select Automation shop pricing and checkout.
Compatibility & Use:
Designed for PanelView Plus 7 Performance and PanelView 5000 terminals.
Not compatible with PanelView Plus 7 Standard terminals — using it may damage the bezel and compromise enclosure sealing.
Ideal for upgrading older terminals without modifying the panel cutout.
Dimensions & Mounting:
Size: approx. 437 mm x 327 mm x 3.2 mm.
Mounting options: panel mount or wall mount.
Includes hardware: screws, anchors, washers.
Installation Tips:
Use the included drill template VIEW-DS004 for accurate hole placement.
Maintain NEMA Type 4X rating by torquing nuts to spec.
Adapter is reusable if replacing with another compatible terminal.
