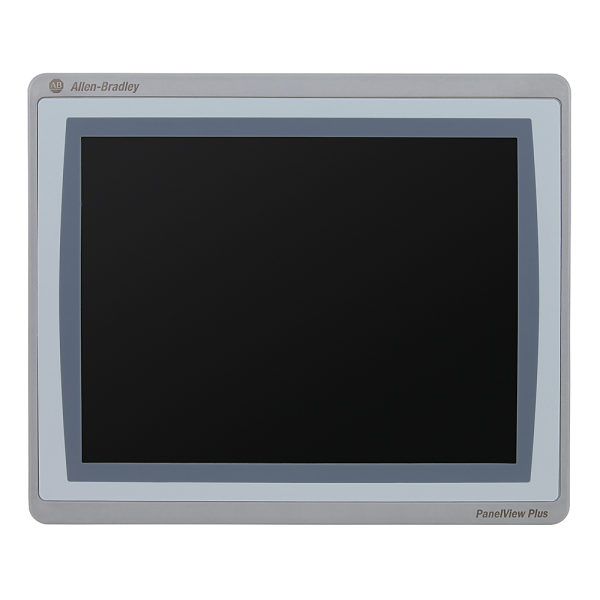

PanelView Plus 7 Standard 12 W Terminal

Specifications: Operator input: Touch. Display type: TFT Colour LCD. Display size, diagonal: 12.1 in. widescreen. Viewing area (W x H): 261 x 163 mm. Display resolution: 1280 x 800 WXGA, 18-bit color graphics. Aspect ratio: 5:3. Brightness, typical: 300 nits. Backlight life: 50,000 hr life, min at 40° C (104 °F) to half-brightness. Touch screen: Analog resistive, Actuation rating: 1 million presses, Operating force: 100 grams. Battery (real-time clock backup): Accuracy: ±2 minutes per month, Battery life: 4 years min at 25 °C (77 °F). Memory, System, User: 512 MB RAM and 512 MB storage, 80 MB nonvolatile storage for applications. Secure Digital (SD) card slot: One SD card slot for storing application files. USB ports, Host, Device: One USB 2.0 high-speed host port (type A) support removal flash drives for storage, One high-speed 1.0 device port (type B) supports connection to host computer. Ethernet ports: Cat. Nos. with 21: One 10/100Base-T, Auto MDI/MDI-X Ethernet port with IEEE1588 support. Cat. Nos. with 22: Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports supporting star, linear, or DLR network topology Operating system: Windows CE includes FTP, VNC client server, ActiveX controls, PDF reader, third-party device support. Firmware: PanelView Plus 7 Standard Series D is only compatible with version 13.x firmware and later. Software: FactoryTalk View Studio for Machine Edition, version 8.0 or later, FactoryTalk ViewPoint, version 2.6 or later. Electrical: Input voltage, DC: 24V DC nom (18...30V DC), non-isolated DC power supply. Power consumption, DC: 50 W max (2.1A at 24V DC). Power supply: DIN-rail power supply, AC-to-DC, 85...265V AC, 47...63 Hz. Mechanical: Weight, approx.: 1.95 kg (4.29 lb). Dimensions, H x W x D, approx.: 246 x 340 x 56.5 mm (9.69 x 13.39 x 2.22 in.). Cutout dimensions, H x W, approx.: 218 x 312 mm (8.58 x 12.28 in.).
