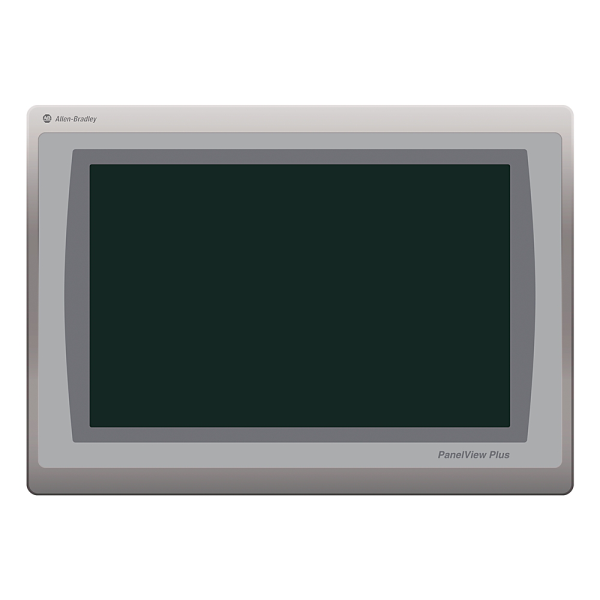

ArmorView Plus 7 Graphic Terminal
SKU: 2711P-T12W22D9P-BM003
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2711P-T12W22D9P-BM003 ArmorView Plus 7 Graphic Terminal is a tough, performance-grade HMI built for on-machine applications, with improved safety and customization options.
This setup strikes a balance between safety and flexibility, making it ideal for users who want a pre-installed emergency to stop while still having the ability to personalize the interface.
Buy currently uses Select Automation shop pricing and checkout.
Display & Interface:
Screen Size: 12-inch-wide aspect ratio colour touchscreen.
Resolution: WXGA (1280 x 800).
Touch Type: Capacitive.
Operating System: Windows 10 IoT Core.
Configuration Highlights:
Model: Performance.
Power Supply: 24V DC (18–30V range).
Branding: Brandless for OEM flexibility.
Button Plate: Includes E-stop with legend button and 6 blank positions for custom button integration.
Connectivity:
Ethernet: Dual ports supporting DLR, star, and linear topologies.
I/O Support: Provision for Ethernet I/O module (not pre-installed in this variant).
Mounting & Build:
Enclosure: Cast-aluminium, IP66-rated for harsh environments.
Mounting Options: Arm mount adapter included compatible with pedestal and VESA systems.
Ingress Protection: Foam-in-place gasket sealing for environmental durability.
Software & Functionality:
FactoryTalk® View ME: Runtime and development support.
Remote Access: VNC and FactoryTalk ViewPoint enabled.
File Viewer: Built-in support for PDFs and manuals.
