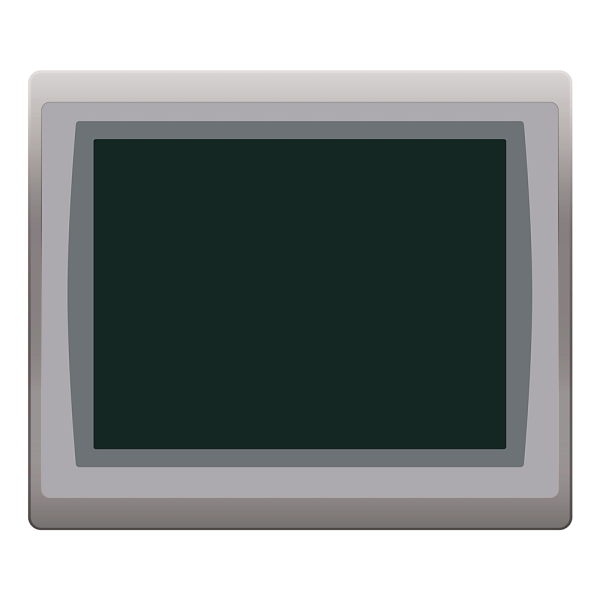

ArmorView Plus 7 Graphic Terminal
SKU: 2711P-T12W22D9P-BM004
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2711P-T12W22D9P-BM004 ArmorView Plus 7 Graphic Terminal is a high-performance, brand-free operator interface built for harsh industrial situations.
For machine-level control, when robustness, adaptability, and security are crucial, this terminal is perfect.
Buy currently uses Select Automation shop pricing and checkout.
Display & Interface:
Screen Size: 12.1-inch widescreen.
Resolution: 1280 x 800 pixels (WXGA).
Touchscreen: Capacitive touch interface.
Colour: Wide aspect ratio colour display.
System & Performance:
Operating System: Windows 10 IoT Core.
Model Type: Performance model.
Branding: Brandless configuration for OEM flexibility.
Power & Connectivity:
Input Voltage: 24V DC (range: 18–30V DC).
Ethernet: Embedded switch supporting DLR, linear, and star topologies.
I/O Configuration: Ethernet I/O with 6 blank positions for expansion.
USB Ports: Available for peripheral connections.
Design & Safety:
Mounting: On-machine compatible (arm, pedestal, or VESA).
Enclosure: Cast-aluminium housing with IP66 rating.
Button Plate: Includes ESTOP with legend button for enhanced safety.
Software & Features:
FactoryTalk® View ME: For application development and runtime visualization.
Remote Access: Supports VNC and FactoryTalk ViewPoint.
File Viewer: Built-in support for PDFs and manuals.
