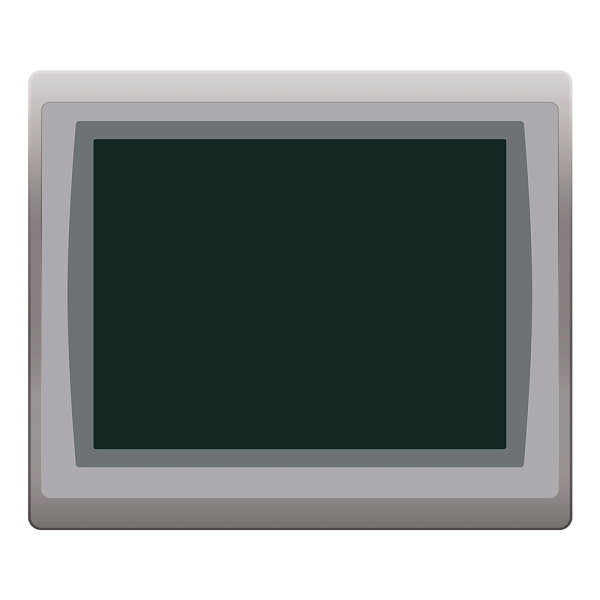

ArmorView Plus 7 Graphic Terminal
SKU: 2711P-T12W22D9P-BM006
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2711P-T12W22D9P-BM006 ArmorView Plus 7 Graphic Terminal is a durable, high-performance HMI built for industrial situations that require durability and versatility.
This type is suited for machine-level control applications requiring dependability, safety, and flexibility.
Buy currently uses Select Automation shop pricing and checkout.
Display & Interface:
Screen: 12.1-inch widescreen colour touch display.
Resolution: 1280 x 800 (WXGA).
Touchscreen Type: Capacitive for precise input.
Operating System: Windows 10 IoT Core.
Performance & Power:
Model Type: Performance model for on-machine use.
Power Input: 24V DC (range: 18–30V DC).
Branding: Brandless configuration for OEM flexibility.
Connectivity & I/O:
Ethernet: Embedded switch supporting DLR, linear, and star topologies.
I/O Configuration: Ethernet I/O with 3 blank positions for expansion.
USB Ports: Available for peripherals and data access.
Design & Safety Features:
Enclosure: Cast-aluminium housing with IP66 rating for dust and water resistance.
Mounting Options: Compatible with arm, pedestal, or VESA mounts.
Button Plate Configuration:
2-position selector switch at Position 0.
Momentary push buttons at Positions 2 and 3.
ESTOP with legend button at Position 62.
Software & Functionality:
FactoryTalk® View ME: Supports application development and runtime visualization.
Remote Access: VNC and FactoryTalk ViewPoint for monitoring from external devices.
File Viewer: Built-in support for PDFs and manuals.
