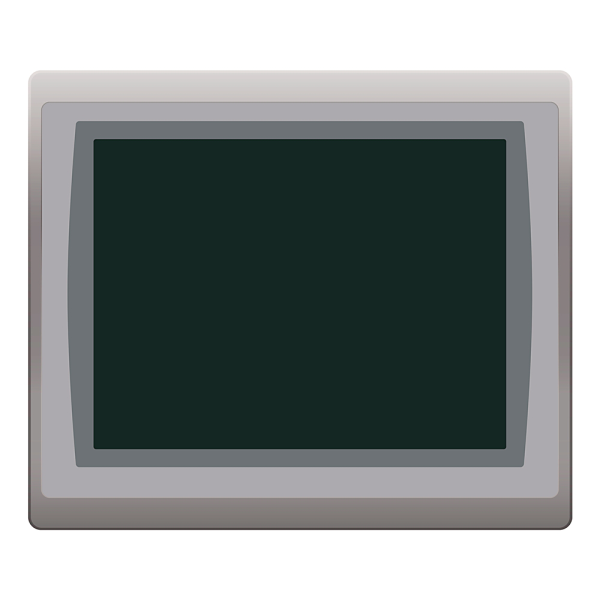

ArmorView Plus 7 Graphic Terminal
SKU: 2711P-T12W22D9P-BM011
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2711P-T12W22D9P-BM011 ArmorView Plus 7 Graphic Terminal is a rugged, brand-free operator interface built for harsh industrial situations.
This configuration provides an excellent balance of safety, control, and customization for machine-level operations.
Buy currently uses Select Automation shop pricing and checkout.
Display & Interface:
Screen Size: 12.1-inch widescreen colour touch display.
Resolution: 1280 x 800 (WXGA).
Touchscreen Type: Capacitive for responsive input.
Operating System: Windows 10 IoT Core.
Performance & Power:
Model Type: Performance model for on-machine use.
Power Input: 24V DC (range: 18–30V DC).
Branding: Brandless configuration for OEM flexibility.
Connectivity & I/O:
Ethernet: Embedded switch supporting DLR, linear, and star topologies.
I/O Configuration: Ethernet I/O with 2 blank positions for expansion.
USB Ports: Available for peripherals and data access.
Button Plate Configuration:
Position 0: 3-position selector switch.
Positions 2, 3, 4: Momentary push buttons.
Position 7: ESTOP with legend button.
Software & Functionality:
FactoryTalk® View ME: Supports application development and runtime visualization.
Remote Access: VNC and FactoryTalk ViewPoint for external monitoring.
File Viewer: Built-in support for PDFs and manuals.
