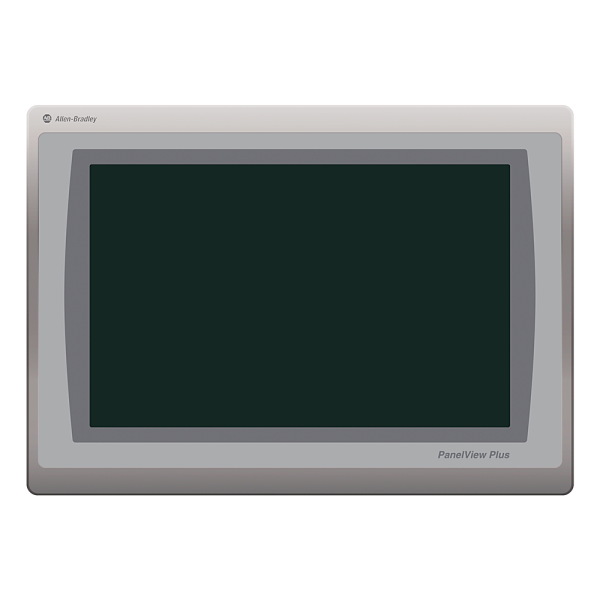

PanelView Plus 7 Graphic Terminal CC
SKU: 2711P-T12W22D9PK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Allen-Bradley's high-performance HMI, the 2711P-T12W22D9PK PanelView Plus 7 Graphic Terminal CC, is a conformally coated model made for demanding industrial settings where defence against dust, moisture, and corrosive substances is essential.
This model is part of the PanelView Plus 7 Performance family, but the "K" suffix denotes conformal coating, making it an excellent choice for long-lasting durability.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Display: 12.1-inch wide-aspect ratio color touchscreen (WXGA 1280×800 resolution).
Touch Interface: Analog resistive with 1 million actuations.
Operating System: Windows 10 IoT Core.
Power Supply: 24V DC (range: 18–30V DC).
Memory: 512 MB RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory).
Connectivity: Dual Ethernet ports with Device Level Ring (DLR) support, 3 USB ports, SD card slot.
Conformal Coating: Protects internal circuitry from corrosive gases and humidity.
Environmental & Safety Ratings:
Ingress Protection: IP66 and UL Type 4X, 12, 13.
Operating Temperature: 0–55 °C (32–131 °F).
Shock & Vibration: 15 g at 11 ms; 2 g peak at 57–500 Hz.
Corrosive Atmosphere Rating: Severity Level G3 per ANSI/ISA 71.04-2013.
Mounting & Integration:
Supports on-machine mounting via arm, pedestal, or VESA kits.
Compatible with FactoryTalk View ME for HMI application development.
Ideal for food processing, chemical plants, and other demanding environments.
