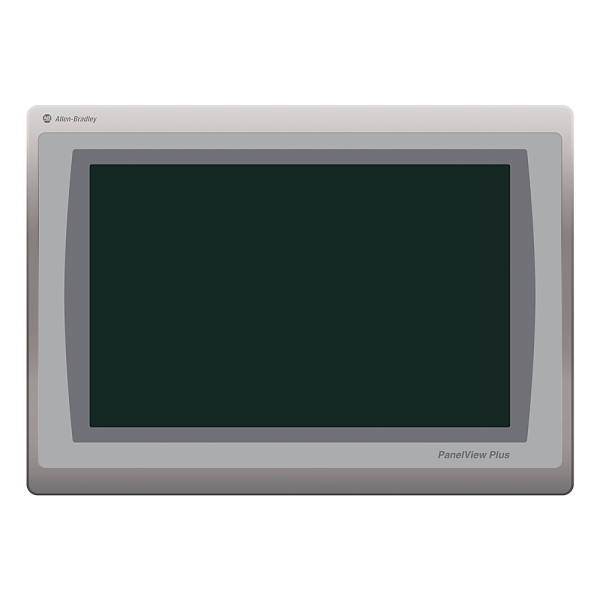

PanelView Plus 7 Graphic Terminal 15-in.
SKU: 2711P-T15C22D9P
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The PanelView™ Plus 7 Standard terminals are operator interface devices.
They monitor and operate devices connected to ControlLogix® 5570 and CompactLogix™ 5370 controllers via an EtherNet/IP network.
Animated graphic and text displays allow operators to see how a machine or process is performing.
Operators interface with the control system via touch screen input.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operator input: Touch.
Display type: TFT Colour.
Display size, diagonal: 15-in.
Viewing area (W x H): 304 x 228 mm (12.0 x 9.0 in.).
Display resolution: (Series A) 1024 x 768 XGA, 18-bit color graphics. (Series B) 1024 x 768 XGA, 24-bit color graphics.
Aspect ratio: 4:3.
Brightness, typical: 300 cd/m 2 (nits) or more.
Backlight life: White light-emitting diode, solid-state. Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable.
Touch screen: Analog resistive, Actuation rating: 1 million presses, Operating force: 100 grams.
Battery (real-time clock backup): Accuracy: ±2 minutes per month, Battery life: 4 years min at 25 °C (77 °F).
Memory, System, User: (Series A) 512 MB RAM and 512 MB storage, 80 MB, approx., nonvolatile storage for applications. (Series B) 4 GB RAM and 19.87 GB storage, 2 GB, approx., nonvolatile storage for applications.
Secure Digital (SD) card slot: One SD card slot for external storage; supports cat. no. 1784-SDx and 1784-SDHCx cards.
USB ports, Host, Device: (Series A) Two USB high-speed 2.0 host ports (type A) support removable flash drives for external storage, One high-speed 2.0 device port (type B) that will be functional in a future release. (Series B) One USB high-speed 3.0 host port (only supports up to 500 mA current output) and one USB 2.0 host port (Type A) supports removable flash drives for external storage, One high-speed 2.0 device port (type B) that will be functional in a future release.
Operating system: (Series A) Windows® CE 6.0 with Extended Features and Microsoft Office Viewers (includes FTP, VNC client server, ActiveX controls, PDF reader, third-party device support). (Series B) Windows 10 IoT Core.
Ethernet ports: Two 10/100Base-T, Auto MDI/MDIX Ethernet ports that support Device Level Ring (DLR), linear, or star network topologies
Software: FactoryTalk View Studio for Machine Edition, version 8.0 or later, FactoryTalk ViewPoint, version 2.6 or later.
Input voltage: 24V DC nom (18...30V DC).
Power consumption: (Series A) 50 W max (2.1 A at 24V DC). (Series B) 39 W max.
Power supply: Supports (SELV) and (PELV) 24V DC supplies.
Weight, approx.: 3.69 kg (8.14 lb).
Dimensions, H x W x D, approx.: 318 x 381 x 69.6 mm (12.52 x 15.00 x 2.74 in).
Cutout dimensions, H x W, approx.: 290 x 353 mm (11.42 x 13.90 in).
