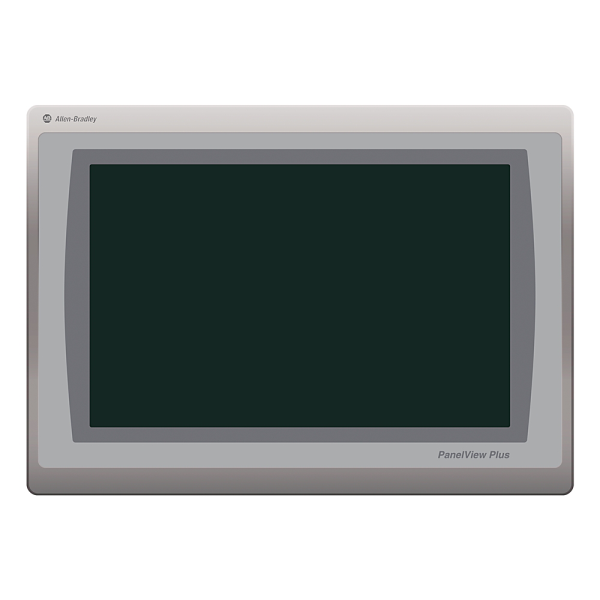

PanelView Plus 7 Standard 4 W Terminal 4.3-in.
SKU: 2711P-T4W22D8S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2711P-T4W22D8S PanelView Plus 7 Standard 4 W Terminal is a compact and efficient HMI developed for industrial control applications that require space and simplicity.
This terminal is ideal for compact machine-level control tasks requiring dependable performance and essential connectivity.
Buy currently uses Select Automation shop pricing and checkout.
Display & Interface:
Screen Size: 4.3-inch widescreen TFT LCD.
Resolution: 480 x 272 WQVGA with 18-bit colour graphics.
Touchscreen Type: Analog resistive.
Aspect Ratio: 16:9.
Brightness: 300 nits.
Backlight Life: 50,000 hours (non-replaceable).
System & Performance:
Operating System: Windows CE 6.0.
Memory: 512 MB RAM and 512 MB storage (approx. 80 MB user memory).
Real-Time Clock: Battery-backed with ±2 minutes/month accuracy.
Connectivity & Expansion:
Ethernet Ports: Dual 10/100Base-T ports supporting DLR, linear, and star topologies.
USB Ports: Two (host and device).
SD Card Slot: For application storage and backup.
Design & Mounting:
Power Input: 24V DC (range: 18–30V DC).
Enclosure Rating: IP66, NEMA Type 4X/12/13 (front panel).
Mounting: Panel-mounted design.
Dimensions: 110 x 135 x 56.5 mm.
Weight: Approx. 0.44 kg (0.97 lb).
Software & Features:
FactoryTalk® View ME: For application development and runtime visualization.
Remote Access: VNC support.
PDF Viewer: Built-in for manuals and documentation.
