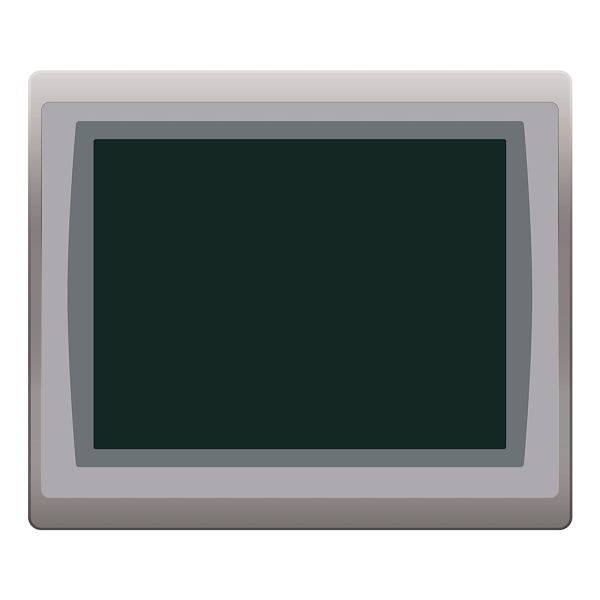

PanelView Plus 7 Standard 6 Terminal 5.7 in.
SKU: 2711P-T6C22D8S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The PanelView™ Plus 7 Standard terminals are operator interface devices.
They monitor and operate devices connected to ControlLogix® 5570 and CompactLogix™ 5370 controllers via an EtherNet/IP network.
Animated graphic and text displays allow operators to see how a machine or process is performing.
Operators interface with the control system via touch screen input.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operator input: Touch.
Display type: Colour TFT LCD.
Display size, diagonal: 5.7 in.
Viewing area: 115 x 86 mm.
Display resolution: 640 x 480 VGA, 18-bit color graphics.
Aspect ratio: 4:3.
Brightness, typical: 300 nits.
Backlight life: 50,000 h life, min. at 40° C to half-brightness. Backlight is not replaceable
Touch screen: Analog resistive, Actuation rating: 1 million presses, Operating force: 100 grams.
Battery (real-time clock backup): Accuracy: +/-2 minutes per month, Battery life: 4 years min at 25 °C (77 °F).
Memory:
System: 512 MB RAM and 512 MB storage.
User: 80 MB non-volatile storage for applications.
Secure Digital (SD) card slot: One SD card slot for storing application files.
USB ports:
Host: One USB 2.0 high-speed host port (type A) support removal flash drives for storage.
Device: One high-speed 1.0 device port (type B) supports connection to host computer.
Ethernet port:
Cat. Nos. with 21: One 10/100Base-T, Auto MDI/MDI-X Ethernet port with IEEE1588 support.
Cat. Nos. with 22: Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports supporting star, linear, or DLR network topology.
Operating system: Windows CE includes FTP, VNC client server, ActiveX controls, PDF reader, third-party device support.
Firmware: PanelView Plus 7 Standard Series D is only compatible with version 13.x firmware and later.
Software: FactoryTalk View Studio for Machine Edition, version 8.0 or later, FactoryTalk ViewPoint, version 2.6 or later.
Electrical:
Input voltage, DC: 24V DC nom (18...30V DC), non-isolated DC power supply.
Power consumption, DC: 35 W max (1.46A at 24V DC).
Power supply: DIN-rail power supply, AC-to-DC, 85...265V AC, 47...63 Hz.
Mechanical:
Weight, approx.: 0.70 kg (1.53 lb).
Dimensions, H x W x D, approx.: 152 x 176 x 56.5 mm (5.98 x 6.93 x 2.22 in.).
Cutout dimensions, H x W, approx.: 123 x 156 mm (4.84 x 6.14 in.).
