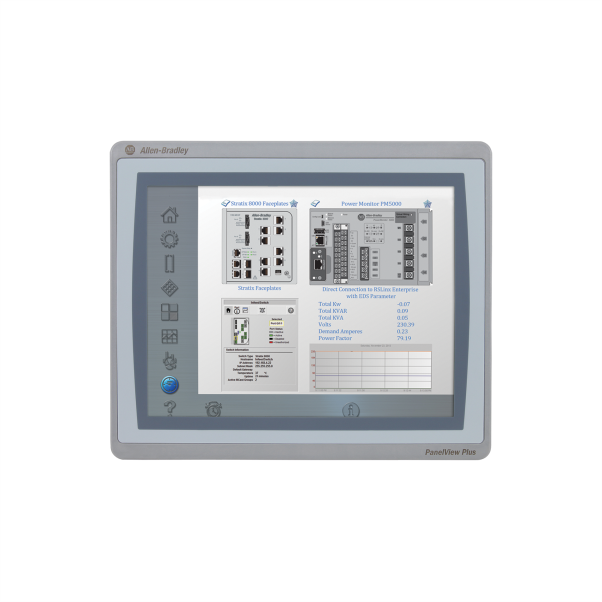

PanelView Plus 7 Standard 7 Terminal

Specifications: Operator input: Touch. Display type: TFT Colour LCD. Display size, diagonal: 6.5 in. Viewing area (W x H): 132 x 99 mm. Display resolution: 640 x 480 VGA, 18-bit color graphics. Aspect ratio: 4:3. Brightness, typical: 300 nits. Backlight life: 50,000 hr life, min at 40° C (104 °F) to half-brightness. Touch screen: Analog resistive, Actuation rating: 1 million presses, Operating force: 100 grams. Battery (real-time clock backup): Accuracy: ±2 minutes per month, Battery life: 4 years min at 25 °C (77 °F). Memory, System, User: 512 MB RAM and 512 MB storage, 80 MB nonvolatile storage for applications. Secure Digital (SD) card slot: One SD card slot for external storage; supports cat. no. 1784-SDx and 1784-SDHCx cards. USB ports, Host, Device: One USB 2.0 high-speed host port (type A) support removal flash drives for storage, One high-speed 1.0 device port (type B) supports connection to host computer. Ethernet ports: Cat. Nos. with 21: One 10/100Base-T, Auto MDI/MDI-X Ethernet port with IEEE1588 support. Cat. Nos. with 22: Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports supporting star, linear, or DLR network topology Operating system: Windows CE includes FTP, VNC client server, ActiveX controls, PDF reader, third-party device support. Firmware: PanelView Plus 7 Standard Series D is only compatible with version 13.x firmware and later. Software: FactoryTalk View Studio for Machine Edition, version 8.0 or later, FactoryTalk ViewPoint, version 2.6 or later. Electrical: Input voltage, DC: 24V DC nom (18...30V DC), nonisolated DC power supply. Power consumption, DC: 50 W max (2.1A at 24V DC). Power supply: DIN-rail power supply, AC-to-DC, 85...265V AC, 47...63 Hz. Mechanical: Weight, approx: 0.85 kg (1.86 lb). Dimensions, HxWxD, approx: 170 x 212 x 56.5 mm (6.69 x 8.35 x 2.22 in.). Cutout dimensions, HxW, approx.: 142 x 184 mm (5.59 x 7.24 in.).
