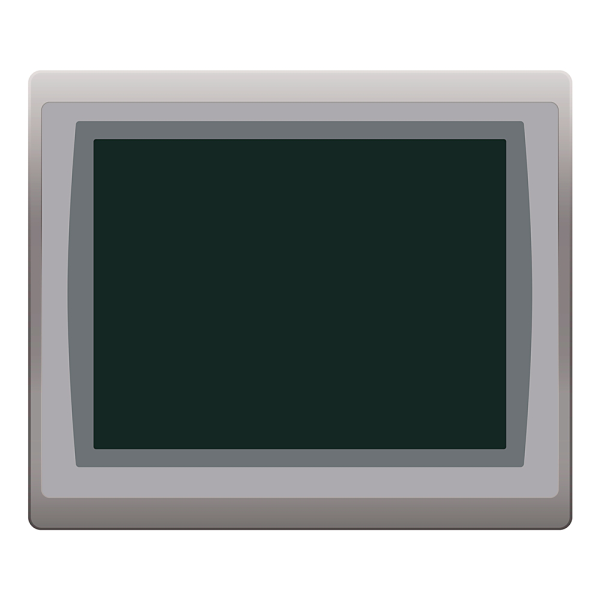

PanelView Plus 7 Graphic Terminal
SKU: 2711P-T7C22D9P-B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2711P-T7C22D9P-B PanelView Plus 7 Graphic Terminal is a high-performance, compact HMI that is ideal for industrial control and monitoring.
This terminal is best suited for compact machine-level control applications that require high performance and reliability.
Buy currently uses Select Automation shop pricing and checkout.
Display & Interface:
Screen Size: 6.5-inch colour TFT touchscreen.
Resolution: VGA (640 x 480 pixels).
Touchscreen Type: Analog resistive.
Colour Depth: 18-bit graphics for vibrant visuals.
System & Performance:
Model Type: Performance model.
Operating System: Windows CE 6.0.
Memory: 512 MB RAM and 512 MB non-volatile storage (approx. 80 MB user memory).
Connectivity & Expansion:
Ethernet Ports: Dual ports supporting DLR, linear, and star topologies.
USB Ports: Two USB ports for peripherals and data transfer.
SD Card Slot: For backup and restore operations.
Protocols Supported: EtherNet/IP.
Design & Mounting:
Power Input: 24V DC (range: 18–30V DC).
Enclosure Rating: IP66, NEMA Type 4X/12/13 (front panel).
Mounting Options: Panel-mounted design.
Software & Features:
FactoryTalk® View ME: For application development and runtime visualization.
Remote Access: VNC support for remote monitoring.
Multimedia Support: Includes video playback and PDF viewer.
Brandless Configuration: Allows OEMs to apply custom branding.
