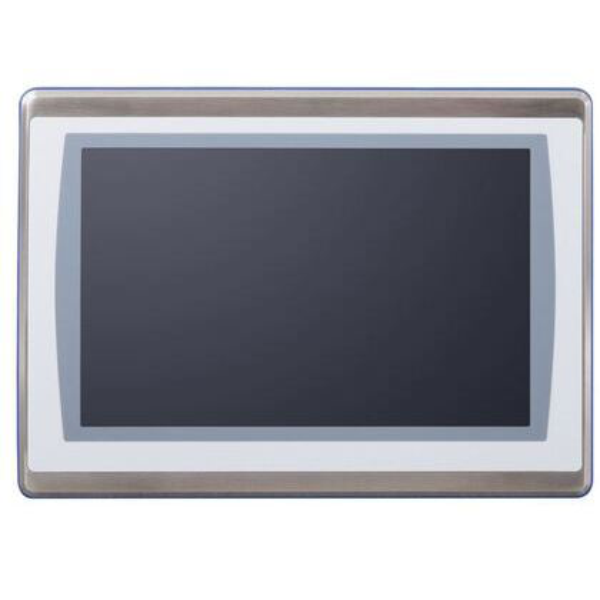

PanelView Plus 7 Graphic Terminal SS

Specifications: Operator input: Touch. Display type: TFT Colour. Display size, diagonal: 9-in. wide screen. Viewing area (W x H): 196 x 118 mm (7.7 x 4.6 in.). Display resolution: (Series B): 800 x 480 WVGA, 18-bit colour graphics. Series C): 800 x 480 WVGA, 24-bit colour graphics. Aspect ratio: 5:3. Brightness, typical: 300 cd/m2 (nits) or more. Backlight life: White light-emitting diode, solid-state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable. Touch screen: Analog resistive, Actuation rating: 1 million presses, Operating force: 100 grams. Battery (real-time clock backup): Accuracy: ±2 minutes per month, Battery life: 4 years min at 25 °C (77 °F), Replacement: CR2032 lithium coin cell. Memory, System, User: (Series B) 512 MB RAM and 512 MB storage 80 MB, approx., non-volatile storage for applications, (Series C) 4 GB RAM and 19.87 GB storage 2 GB, approx., non-volatile storage for applications. Secure Digital (SD) card slot: One SD card slot for external storage; supports cat. no. 1784-SDx and 1784-SDHCx cards. USB ports, Host, Device: (Series B) Two USB high-speed 2.0 host ports (type A) support removable flash drives for external storage One high-speed 2.0 device port (type B) that will be functional in a future release, (Series C) One USB high-speed 3.0 host port and one USB 2.0 host port (Type A) supports removable flash drives for external storage One high-speed 2.0 device port (type B) that will be functional in a future release. Operating system: (Series B) Windows CE 6.0 with Extended Features and Microsoft Office Viewers (includes FTP, VNC client server, ActiveX controls, PDF reader, third-party device support) (Series C) Windows 10 IoT Core. Ethernet ports: Two 10/100Base-T, Auto MDI/MDIX Ethernet ports that support Device Level Ring (DLR), linear, or star network topologies. Software: FactoryTalk View Studio for Machine Edition, FactoryTalk ViewPoint, version 2.6 or later. Input voltage: 24V DC nom (18...30V DC). Power consumption: (Series B) 50 W max (2.1 A at 24V DC) (Series C) 30 W max. Power supply: Supports (SELV) and (PELV) 24V DC supplies. Stainless-steel bezel: 316 stainless steels with hygienic No. 4 finish. Silicone gasket: Gasket material is compliant with FDA 21 CFR 177.2600. Weight, approx.: 2.1 kg (4.6 lb). Dimensions, approx. (H x W x D): 190 x 280 x 69.6 mm (7.48 x 11.02 x 2.74 in.). Cutout dimensions, approx. (H x W): 162 x 252 mm (6.38 x 9.92 in.).
