PanelView™ 800 Graphic Terminals 2711R, 10-inch, Resolution: 800 x 600 SVGA, Display type: TFT touch screen, wide LCD, Product dimension (mm) (height x width x depth): 225 x 287 x 55
SKU: 2711R-T10T
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

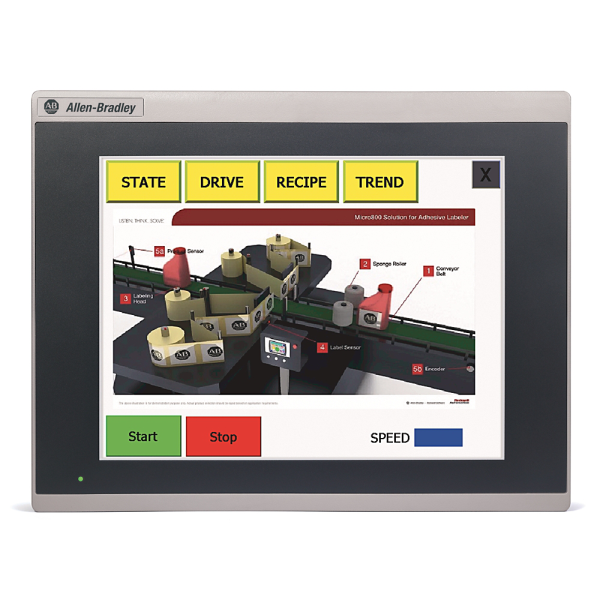

The 2711R-T10T is a 10.4-inch touchscreen Human-Machine Interface (HMI) from the PanelView 800 series that is intended for small, high-performance control in industrial settings.
It has a colour TFT LCD display, several communication interfaces, and a powerful processor, making it suitable for machine monitoring and control.
Touchscreen Input: Easy interaction with machine data and controls.
Multi-Port Connectivity: Supports Ethernet, serial, and USB communication.
Fast Processing: 800 MHz CPU for responsive performance.
Expandable Storage: Includes microSD slot for data backup and transfer.
Multilingual Support: Usable in global applications.
Compact Design: Ideal for panel mounting in tight spaces.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display Size: 10.4 inches (211.2 × 158.4 mm).
Display Type: Colour transmissive TFT active-matrix LCD.
Resolution: 800 × 600 pixels.
Touch Interface: Analog resistive touchscreen.
Processor Speed: 800 MHz.
Memory: 256 MB DDR RAM + 256 MB internal flash.
Input Voltage: 18–32 VDC.
Power Consumption: 14 W (0.48 A @ 24 VDC).
Communication Ports: Ethernet, USB, RS-232, RS-422, RS-485.
Mounting Depth: 55 mm.
Dimensions (W × H × D): 287 × 225 × 55 mm.
Operating Temp: 0°C to +50°C.
IP Rating: IP65 (front panel when mounted).
Certifications: CE, UL, RoHS compliant.
Lifecycle Status: Active.
