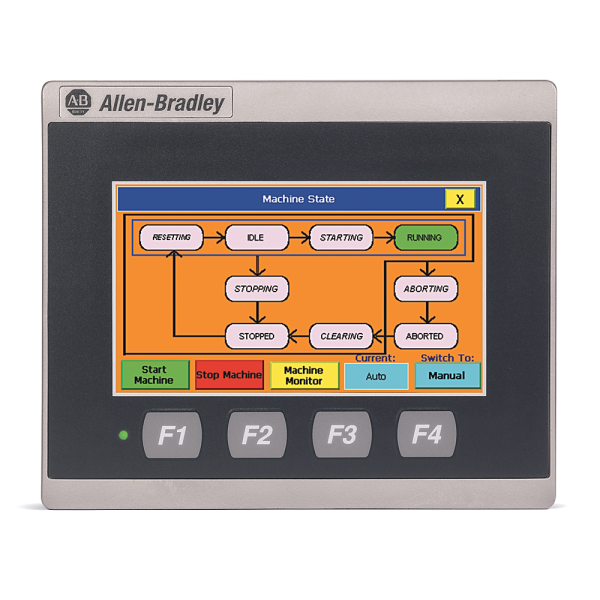

PanelView™ 800 Graphic Terminals 2711R, 4-inch, Resolution: 480 x 272 WQVGA, Display type: TFT touch screen, wide LCD, Product dimension (mm) (height x width x depth): 116 x 138 x 43
SKU: 2711R-T4T
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2711R-T4T is a small 4.3-inch touchscreen HMI terminal intended for machine-level interface applications.
It has a brilliant TFT display, quick processing, and flexible connectivity, making it perfect for tiny control systems and operator panels.
High Performance: 800 MHz processor for responsive operation.
Expandable Storage: microSD support for data logging and updates.
Flexible Connectivity: Ethernet and serial ports for broad compatibility.
Touch + Keypad Input: Combines touchscreen with 4 function keys for versatile control.
Remote Monitoring: Supports VNC server for remote access and troubleshooting.
Recipe Management: Upload/download parameter groups for quick configuration.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display Size: 4.3 inches.
Display Type: Colour TFT active-matrix LCD.
Resolution: 480 × 272 pixels.
Display Area: 3.74 × 2.12 inches.
Backlight Life: Minimum 40,000 hours.
Touch Interface: Analog resistive touchscreen.
Processor Speed: 800 MHz.
Memory: 256 MB RAM + 256 MB internal flash.
Input Voltage: 24 VDC.
Communication Ports: Ethernet, RS-232, RS-422/RS-485, USB Host.
microSD Slot: Supports file transfer and firmware updates.
Function Keys: 4 programmable keys.
Operating Temp: 0°C to +50°C.
Mounting Type: Panel-mounted.
IP Rating: IP65 (front panel when mounted).
Lifecycle Status: Active.
