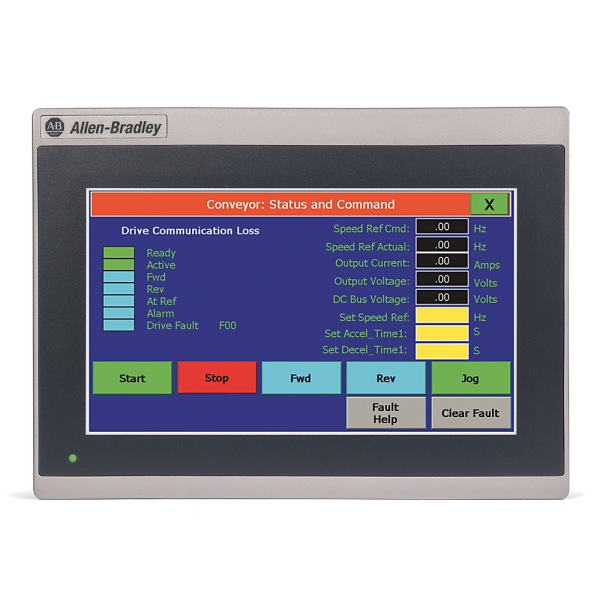

PanelView™ 800 Graphic Terminals 2711R, 7-inch, Resolution: 800 x 480 WVGA, Display type: TFT touch screen, wide LCD, Product dimension (mm) (height x width x depth): 144 x 197 x 54
SKU: 2711R-T7T
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2711R-T7T is a 7-inch touchscreen HMI intended for machine-level interface applications.
It is part of the PanelView 800 series, which provides a compact and high-performance solution for industrial control systems.
Its brilliant TFT display, quick processor, and configurable connectivity make it perfect for real-time monitoring and control.
Multi-Protocol Support: Compatible with Ethernet/IP, serial protocols, and USB.
Fast Performance: 800 MHz processor ensures responsive operation.
Expandable Storage: microSD slot for data logging and backup.
Alarm Functionality: Alerts operators to system faults or events.
User-Friendly Interface: Wide, bright screen with intuitive touch controls.
Software Compatibility: Works with Connected Components Workbench v8.00+.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display Size: 7 inches.
Display Type: LCD TFT with LED backlight.
Resolution: 800 × 480 pixels.
Touch Interface: Analog resistive touchscreen.
Processor Speed: 800 MHz.
Memory: 256 MB RAM + 256 MB internal flash.
Operating System: Microsoft Windows CE 6.0.
Input Voltage: 24 VDC.
Power Consumption: ~13 W.
Communication Ports: Ethernet (10/100 Mbps), USB Host (USB 2.0), RS-232, RS-422/RS-485.
microSD Slot: Supports up to 32 GB (FAT32/16 formats).
Dimensions (W × H × D): 197 × 144 × 54 mm.
Operating Temp: 0°C to +50°C.
IP Rating: IP65 (front panel when mounted).
Lifecycle Status: Active.
