MobileView Accessory, Junction Box
SKU: 2711T-JBIP20DC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

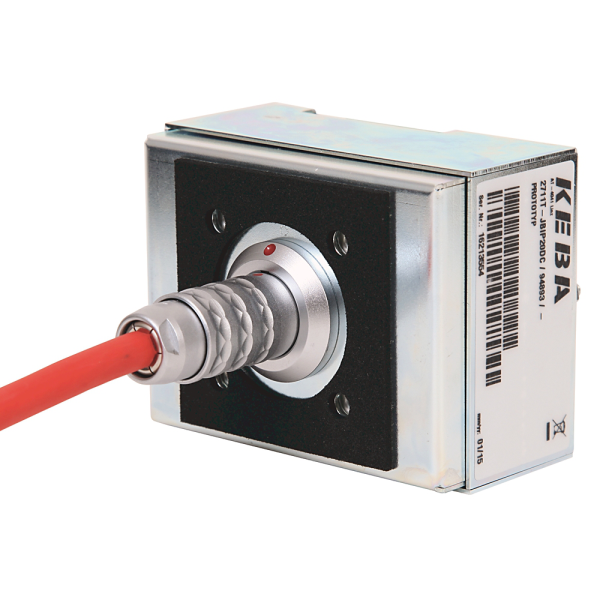

The 2711T-JBIP20DC is a 24V DC-powered IP20 junction box that connects first-generation MobileView terminals using a 20-pin connection cable with a silver connector.
It acts as an interface between the MobileView HMI and the machine's control system, allowing access to safety functions and general operations.
This junction box contains:
Cord grip connections for safe cable handling.
Box ID functionality identifies the linked terminal.
E-stop bypass capability allows for flexible safety integration
A junction box cover for protection when not in use.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalog Number: 2711T-JBIP20DC.
Power Supply: 24V DC.
Ingress Protection: IP20 (not suitable for wet or dusty environments).
Connector Type: 20-pin silver connector (for first-gen MobileView terminals).
Cable Compatibility: 10 m or 15 m connection cable with silver connector.
Mounting: Panel or machine mountable.
Features: Cord grips, Box ID functionality, E-stop bypass, Junction box cap.
Use Case: Interface between MobileView terminal and machine control system.
Compatible Terminals: 2711T-T10G1N1, 2711T-F10G1N1 (first-generation).
Certifications: CE, cULus, RoHS compliant.
