MobileView Accessory, Bridge Connector
SKU: 2711T-JUMP
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

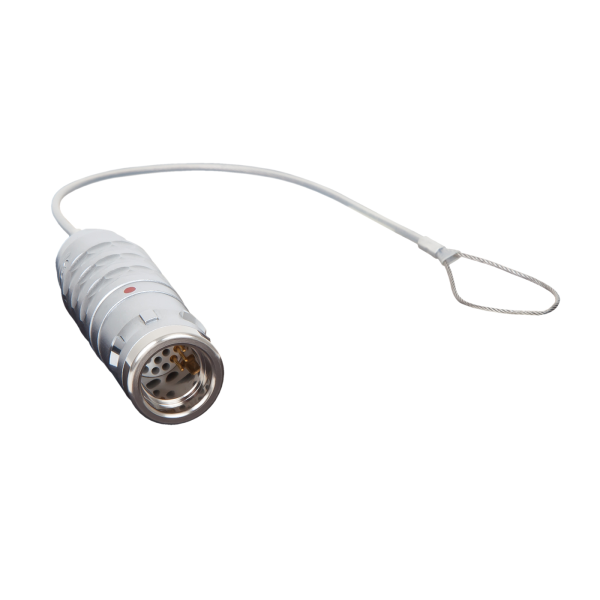

The 2711T-JUMP bridge connector allows MobileView™ tethered operator terminals to bypass the emergency stop (E-stop) contactors when not connected.
This enables the machine or automation system to continue running safely even without the MobileView terminal attached.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 2711T-JUMP.
Product Type: Bridge Connector (MobileView Accessory).
Function: Bypasses E-stop contactors when MobileView terminal is disconnected.
Compatibility: MobileView junction boxes (IP20 and IP65).
Connector Options: 20-pin (silver) for first-gen terminals; 22-pin (black) for second gen.
Installation Torque: 1.2 N·m (10.6 lb·in) for plug connection.
Use Case: Enables one MobileView terminal to be shared across multiple stations.
Safety Note: Not an E-stop device; external E-stop must be present.
Lifecycle Status: Active.
