MobileView Tethered Operator Terminal
SKU: 2711T-T10G1N1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

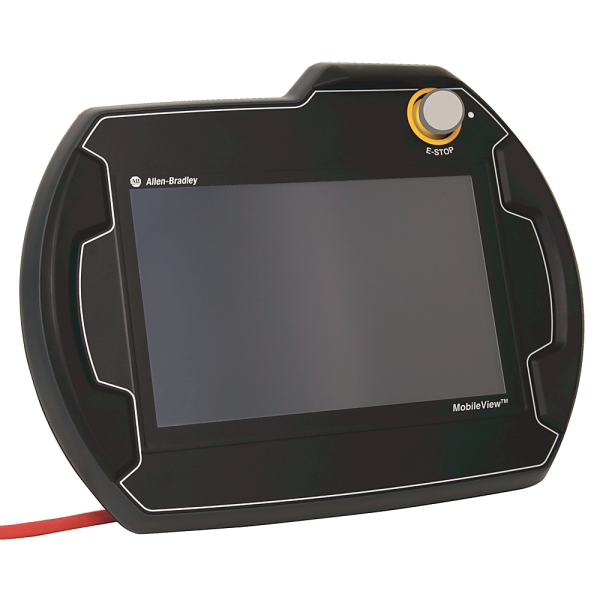

The 2711T-T10G1N1 is a first-generation MobileView tethered operator terminal with a 10-inch touchscreen and a grey stop button (not considered an emergency stop).
It links to the control system using a 20-pin silver connection cable and an IP20 junction box, allowing operators to access both safety and regular machine controls.
This concept is suited for mobile operations in industrial settings where safety, mobility, and real-time contact are critical.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display: 10-inch colour touchscreen.
Button Type: Gray stop button (not an E-stop).
Connection Type: 20-pin silver connector cable.
Junction Box Compatibility: IP20 junction box (2711T-JBIP20DC).
Weight: Approx. 1550 g (3.42 lb) without options.
Keypad: Membrane keypad with stainless steel dome switches for tactile feedback.
Safety Compliance: Meets Safety Class III for electrical shock (EN 61131-2).
Power Source: Supplied via junction box (24V DC).
Certifications: CE, UL, RoHS (as of July 2025).
