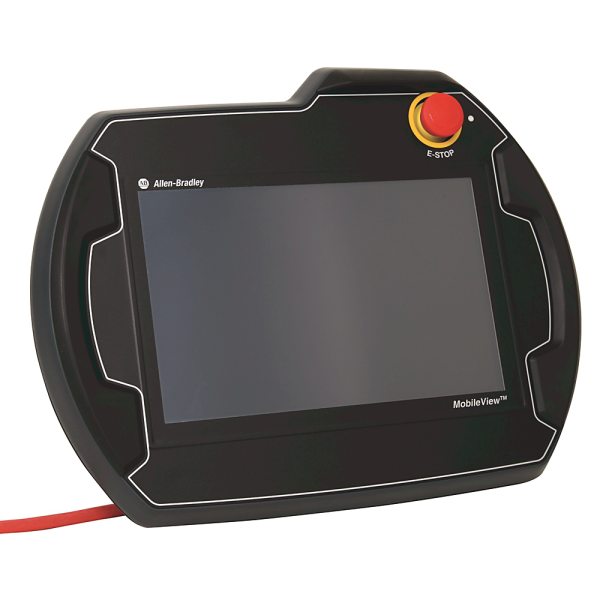

MobileView Tethered Operator Terminal
SKU: 2711T-T10R1N1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The first-generation MobileViewTM 2711T series, which includes the 2711T-T10R1N1, is made for tethered operation in industrial settings.
With its integrated E-stop and enable switches, 10-inch touchscreen, and 20-pin silver connector, it may be connected to an IP20 junction box.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 2711T-T10R1N1.
Display Size: 10.4-inch TFT touchscreen.
Resolution: 800 × 600 pixels.
Power Supply: 24V DC.
Connector Type: 20-pin silver connector (first-generation).
Ingress Protection: IP20 (when used with IP20 junction box).
Safety Features: Emergency Stop (E-stop), Enable switches.
Weight: Approx. 1.55 kg (3.42 lb).
Dimensions: 352 mm × 274 mm × 108.5 mm (13.86 × 10.79 × 4.27 in).
Certifications: CE, UL, RoHS (as of July 2024).
Lifecycle Status: Active.
