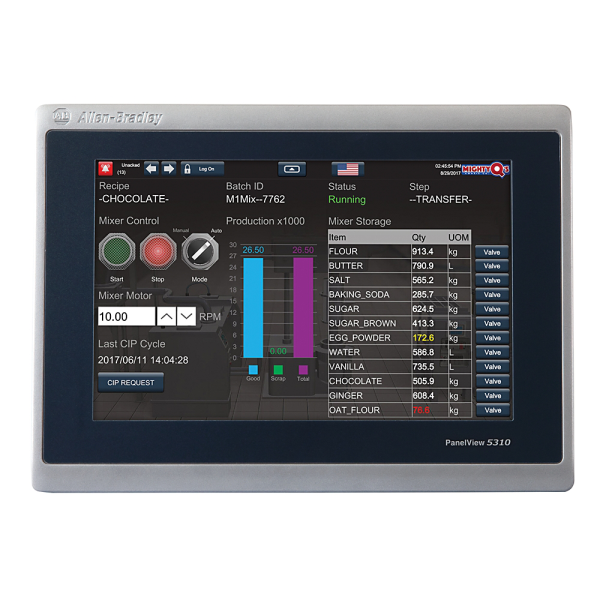

PanelView 5310 Graphic Terminal

Specifications: Operator input: Touch. Display type: Colour TFT LCD (thin-film-transistor, liquid-crystal display). Display size, diagonal: 7-in. widescreen. View area, W x H: 152 x 91 mm (6.0 x 3.6 in.). Display resolution/aspect ratio: 800 x 480 WVGA/5:3. Colour depth: 24-bit colour graphics (16.7 million colours). Brightness, typical: 300 cd/m 2 (Nits). Backlight: Light-emitting diode, non-replaceable, Life: 50,000 h min at 40 °C (104 °F) to half-brightness. Backlight power consumption, typical: 3 W. Touch screen: Analog resistive, Actuation rating: 1 million presses, Operating force: <100 grams. Battery (real-time clock backup): Accuracy: +/-2 minutes per month. Battery life: 4 years min at 25 °C (77 °F). Replacement: CR2032 lithium coin cell. Memory: RAM: 1 GB RAM. User available: 1 GB non-volatile storage for projects. Secure Digital (SD) card slot: One SD card slot for external storage; supports cat. no. 1784-SDx cards. USB ports: Host: One USB high-speed 2.0 host port (type A) supports removable drives for external storage. Device: One high-speed 2.0 device port (type B) supports connection to host computer (available in a future release). Ethernet port: One 10/100Base-T, Auto MDI/MDI-X Ethernet port for controller communication. Status indicators: STS (status, green), ERR (error, red). Software: Studio 5000 environment provides single portal to View Designer and Logix Designer applications. Electrical: USB host port (type A): 0.5 A at 5V DC. Input voltage: 24V DC nom (18...30V DC). Power consumption, max: 13 W. Power consumption, typical: 9 W. Power dissipation: 31 BTU/hr. Inrush current, max: 15 A. Power supply: Supports safety extra low voltage and protected extra low voltage 24V DC supplies.
