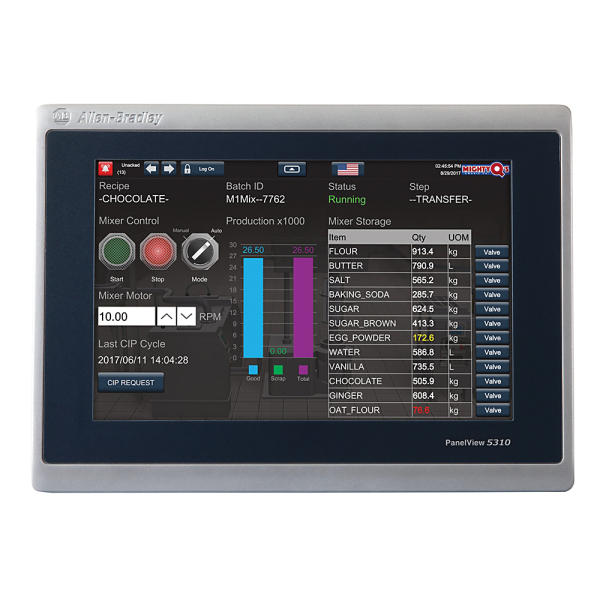

PanelView 5310 Graphic Terminal CC
SKU: 2713P-T7WD1-K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2713P-T7WD1-K PanelView 5310 Graphic Terminal CC is a conformally coated version of Allen-Bradley's 7-inch wide-screen HMI designed for industrial applications that require protection from moisture, dust, and corrosive gases.
This variant is best suited for corrosive or high-humidity situations such as chemical processing, food manufacturing, and outdoor installations.
Buy currently uses Select Automation shop pricing and checkout.
Core Specifications:
Display: 7-inch-wide aspect ratio TFT LCD (800 × 480 WVGA).
Touchscreen: Analog resistive, rated for 1 million actuations.
Power Supply: 24V DC (range: 18–30V DC).
Memory: 1 GB RAM, 1 GB non-volatile storage for projects.
Connectivity:
1 × 10/100Base-T Ethernet port (Auto MDI/MDI-X).
1 × USB 2.0 host port (Type A).
1 × USB 2.0 device port (Type B).
1 × SD card slot (supports up to 32 GB).
Environmental & Safety Ratings:
Conformal Coating: Meets G3 severity level per ANSI/ISA 71.04-2013.
Ingress Protection: IP66, NEMA Type 4X, 12, 13.
Operating Temperature: 0–50 °C (32–122 °F).
Shock & Vibration: 15 g @ 11 ms; 2 g peak at 57–500 Hz.
Humidity: 5–95% non-condensing.
Altitude: Up to 2000 m (6562 ft).
Software & Integration:
Runs Studio 5000 View Designer for HMI development.
Seamless integration with ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers via EtherNet/IP.
Supports up to 100 user-defined screens and 4,000 Logix-based alarms.
