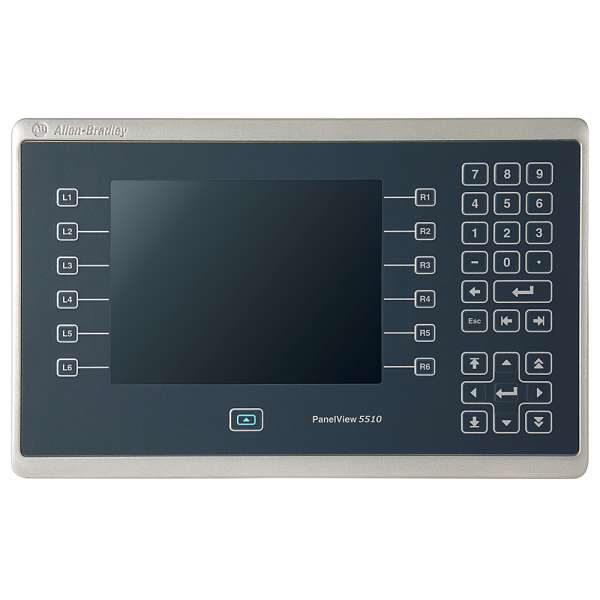

PanelView 5510 Graphic Terminal
SKU: 2715P-B10CD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2715P-B10CD is a 10-inch keypad + touchscreen graphic terminal intended for high-performance applications.
It is a member of the PanelView 5510 family, which integrates with ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers via Studio 5000 View Designer software.
This type has a 4:3 aspect ratio, a colour display, and a 24V DC power input, making it perfect for applications that require both tactile and touch input for operator control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display & Input:
Screen Size: 10.1 inches (diagonal).
Resolution: 800 × 600 pixels (SVGA).
Display Type: TFT colour LCD.
Touchscreen: Analog resistive (rated for 1 million presses).
Keypad:
16 function keys (L1–L8, R1–R8).
Numeric keypad.
Navigation keys (arrow keys, Enter, etc.).
Backlight: LED (non-replaceable, ≥50,000 hours at 40 °C).
Performance & Memory:
RAM: 1 GB.
Non-volatile Storage: 1 GB.
SD Card Slot: Supports 1784-SD1 (1 GB), SD2 (2 GB), SDHC8 (8 GB), SDHC32 (32 GB).
Power & Battery:
Power Input: 24V DC (SELV/PELV compliant).
Battery: CR2032 lithium coin cell.
Life: ~4 years at 25 °C.
Accuracy: ±2 minutes/month.
Environmental Ratings:
Operating Temperature: 0–55 °C.
Storage Temperature: –25 to 70 °C.
Humidity: 5–95% non-condensing.
Shock Resistance:
Operating: 15 g @ 11 ms.
Non-operating: 30 g @ 11 ms.
Vibration: 2 g peak at 57–500 Hz.
Certifications: CE, RoHS, UL, cUL, KC.
Software & Integration:
Programming Software: Studio 5000 View Designer.
Controller Compatibility: ControlLogix 5570/5580, CompactLogix 5370/5380/5480.
Max Screens: 500 user-defined screens.
Alarms: Up to 4,000 Logix-based alarms.
Web Browser: HTML5-capable (for IP cameras, videos, web pages).
