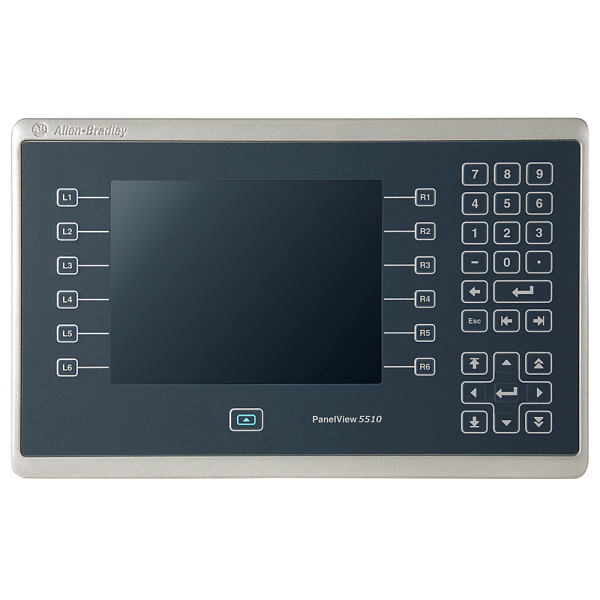

PanelView 5510 Graphic Terminal
SKU: 2715P-B15CD-B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2715P-B15CD-B PanelView 5510 Graphic Terminal is a generic version of Allen-Bradley's 15-inch industrial HMI from the PanelView 5000 family.
It has high-performance visualization and tight integration with Logix controllers, but no Allen-Bradley logo or product identification on the bezel.
This model is perfect for OEMs or end users that want a neutral branding option without sacrificing functionality.
Buy currently uses Select Automation shop pricing and checkout.
Display & Input:
Screen Size: 15-inch color TFT LCD.
Resolution: 1024 × 768 XGA (4:3 aspect ratio).
Touchscreen: Analog resistive, rated for 1 million actuations.
Keypad: 20 function keys (L1–L10, R1–R10), numeric keypad, navigation keys.
System Specs:
Power Supply: 24V DC (range: 18–30V DC).
Memory: 1 GB RAM, 1 GB nonvolatile storage for projects.
Connectivity:
2 × Ethernet ports (10/100Base-T, DLR support).
2 × USB 2.0 host ports (Type A).
1 × USB 2.0 device port (Type B).
1 × SD card slot (supports up to 32 GB).
Environmental Ratings:
Ingress Protection: IP66, NEMA Type 4X, 12, 13.
Operating Temp: 0–55 °C (32–131 °F).
Shock/Vibration: 15 g @ 11 ms; 2 g peak at 57–500 Hz.
Humidity: 5–95% non-condensing.
Software & Integration:
Runs Studio 5000 View Designer.
Supports up to 500 user-defined screens and 4,000 Logix-based alarms.
Seamless integration with ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers.
