PanelView 5510 Graphic Terminal CC
SKU: 2715P-B15CD-K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

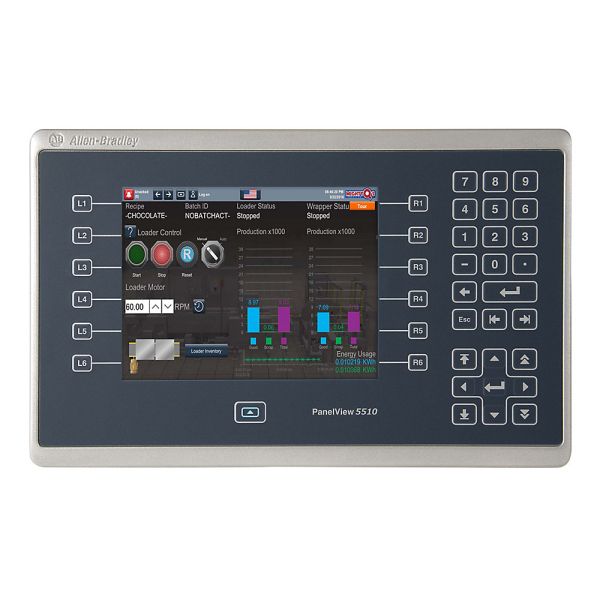

The 2715P-B15CD-K PanelView 5510 Graphic Terminal is a 15-inch industrial HMI from Rockwell Automation that has conformal coating (CC) for added protection in tough settings.
Model: 2715P-B15CD-K.
Series: PanelView 5510.
Display Type: Graphic terminal with keypad and touchscreen.
Conformal Coating: Protects internal circuitry from moisture, dust, and corrosive gases.
Integration: Optimized for ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers.
Software: Uses Studio 5000 View Designer for development and runtime.
Buy currently uses Select Automation shop pricing and checkout.
Display & Input:
Size: 15-inch color TFT LCD.
Resolution: 1024 × 768 (XGA), 4:3 aspect ratio.
Touchscreen: Analog resistive, rated for 1 million actuations.
Keypad: 20 function keys (L1–L10, R1–R10), numeric keypad, navigation keys.
Brightness: ~300 cd/m².
Backlight Life: ≥50,000 hours at 40 °C to half-brightness.
System Specs:
RAM: 1 GB.
Storage: 1 GB nonvolatile memory for projects.
Battery: CR2032 lithium coin cell, 4-year life at 25 °C, ±2 min/month accuracy.
Connectivity:
Ethernet: 2 × 10/100Base-T ports (DLR, linear, star topologies).
USB:
2 × USB 2.0 host ports (Type A).
1 × USB 2.0 device port (Type B).
SD Card Slot: Supports external storage (up to 32 GB).
Environmental Ratings:
Operating Temp: 0–55 °C (32–131 °F).
Humidity: 5–95% non-condensing.
Shock: 15 g @ 11 ms (operating), 30 g @ 11 ms (non-operating).
Vibration: 2 g peak at 57–500 Hz.
Ingress Protection: IP66, NEMA Type 4X, 12, 13.
Corrosive Atmosphere: Meets ASTM B845-97 Method K and ANSI/ISA 71.04 Severity Level GX.
Features & Integration:
Screens: Supports up to 500 user-defined screens.
Alarms: Up to 4,000 Logix-based alarms.
Diagnostics: Automatic system diagnostics and message buffering.
Web Browser: HTML5-capable for IP camera streams and web content.
Physical Specs:
Dimensions: 418 mm × 290 mm (16.46 in × 11.42 in).
Weight: ~3.72 kg (8.2 lb).
Power Supply: 24V DC (range: 18–30V DC), max consumption ~25 W.
