PanelView 5510 Graphic Terminal
SKU: 2715P-B7CD-B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

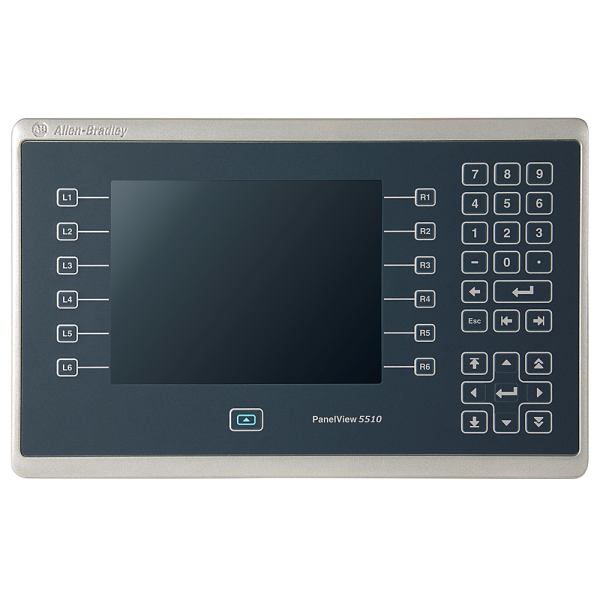

The 2715P-B7CD-B is a 7-inch graphic terminal from Rockwell Automation's PanelView 5510 series, specifically intended for high-performance machine-level visualization.
It combines a resistive touchscreen and a physical keypad to provide workers with numerous input options in industrial settings.
What distinguishes the "-B" model is its conformal coating, which shields internal circuitry from moisture, dust, and corrosive chemicals, making it appropriate for tough or high-humidity environments such as food processing, chemical plants, or outdoor installations.
Key features:
Dual input: touchscreen with 12 function keys, numeric keypad, and navigation keys.
High integration: It links seamlessly to ControlLogix and CompactLogix controllers.
Studio 5000 View Designer provides a unified development environment for HMI and controller logic.
HTML5 browser: Enables embedded online content and IP camera feeds.
Robust diagnostics include real-time defect detection and system status indications.
Conformal coating provides enhanced protection in harsh industrial environments.
Buy currently uses Select Automation shop pricing and checkout.
Display & Input:
7-inch colour TFT LCD screen.
Resolution: 640 × 480 pixels (VGA).
Aspect ratio: 4:3.
Brightness: 300 cd/m² (typical).
Analog resistive touchscreen (glove-compatible).
12 function keys (L1–L6, R1–R6).
Numeric keypad and navigation keys.
LED backlight (non-replaceable, ≥50,000 hours at 40 °C).
Conformal coating for enhanced protection in harsh environments.
Performance & Memory:
ARM Cortex-A9 quad-core processor.
1 GB RAM.
1 GB non-volatile storage for user projects.
Supports up to 500 user-defined screens.
Supports up to 4,000 Logix-based alarms (with Studio 5000 View Designer v5 and Logix Designer v32 or higher).
Connectivity:
2 × Ethernet ports (10/100Base-T, Auto MDI/MDI-X).
Supports Device Level Ring (DLR), linear, and star topologies.
2 × USB 2.0 host ports (Type A).
1 × USB 2.0 device port (Type B).
SD card slot (supports 1784-SDx cards for external storage).
Power & Battery:
Power input: 24V DC SELV/PELV compliant.
Battery: CR2032 lithium coin cell (Allen-Bradley part #2711P-RY2032).
Battery life: ≥4 years at 25 °C.
Environmental Ratings:
Operating temperature: 0–55 °C.
Storage temperature: –25 to 70 °C.
Relative humidity: 5–95% non-condensing.
Shock resistance:
Operating: 15 g @ 11 ms.
Non-operating: 30 g @ 11 ms.
Vibration resistance:
2 g peak at 57–500 Hz.
