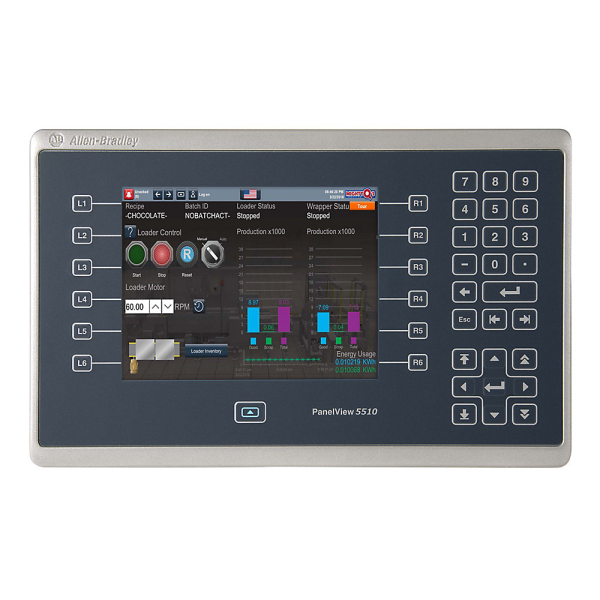

PanelView 5510 Graphic Terminal CC

Display & Input: Size: 7-inch widescreen TFT LCD. Resolution: 800 × 480 (WVGA), 5:3 aspect ratio. Touchscreen: Analog resistive, rated for 1 million actuations. Keypad: 12 function keys (L1–L6, R1–R6), numeric keypad, navigation keys. Brightness: ~300 cd/m². Backlight Life: ≥50,000 hours at 40 °C to half-brightness. System Specs: RAM: 1 GB. Storage: 1 GB nonvolatile memory for projects. Battery: CR2032 lithium coin cell, 4-year life at 25 °C, ±2 min/month accuracy. Connectivity: Ethernet: 2 × 10/100Base-T ports (DLR, linear, star topologies). USB: 2 × USB 2.0 host ports (Type A). 1 × USB 2.0 device port (Type B). SD Card Slot: Supports external storage (up to 32 GB). Environmental Ratings: Operating Temp: 0–55 °C (32–131 °F). Humidity: 5–95% non-condensing. Shock: 15 g @ 11 ms (operating), 30 g @ 11 ms (non-operating). Vibration: 2 g peak at 57–500 Hz. Ingress Protection: IP66, NEMA Type 4X, 12, 13. Corrosive Atmosphere: ASTM B845-97 Method K, Severity Level GX. Features & Integration: Screens: Up to 500 user-defined screens. Alarms: Up to 4,000 Logix-based alarms. Diagnostics: Automatic system diagnostics and message buffering. Web Browser: HTML5-capable for IP camera streams and web content. Physical Specs: Dimensions: Approx. 285 mm × 178 mm (11.22 in × 7.01 in). Cutout Size: 237 mm × 142 mm (9.33 in × 5.59 in). Weight: ~2.27 kg (5 lb). Power Supply: 24V DC (range: 18–30V DC), max consumption ~22 W.
