PanelView 5510 Graphic Terminal 7-in.
SKU: 2715P-B7CD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

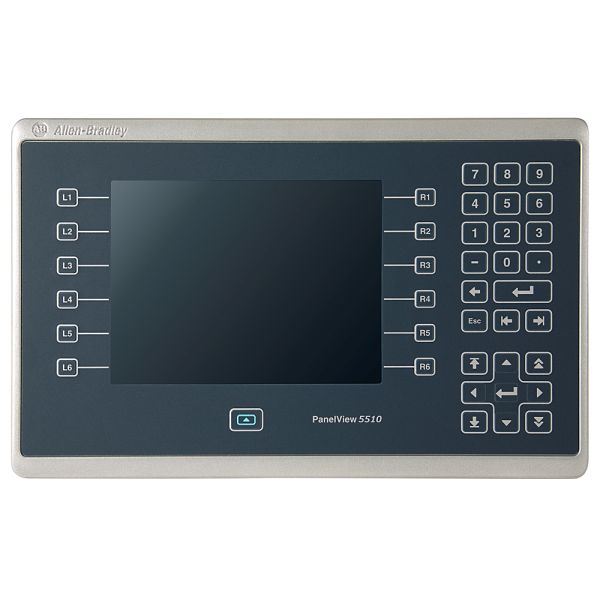

The 2715P-B7CD is a 7-inch graphic terminal from Allen-Bradley's PanelView 5510 series that combines a touchscreen interface and a physical keypad to improve operator control.
It is designed to work seamlessly with ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers via Studio 5000 View Designer software.
This type is suited for contexts where tactile input is desired over touch interface, providing quick navigation, diagnostics, and real-time control in small machine-level applications.
Buy currently uses Select Automation shop pricing and checkout.
Display & Interface:
7-inch colour TFT LCD screen.
Resolution: 640 × 480 pixels (VGA).
Aspect ratio: 4:3.
Brightness: 300 cd/m² (typical).
Analog resistive touchscreen (glove-compatible).
12 function keys (L1–L6, R1–R6).
Numeric keypad and navigation keys.
LED backlight (non-replaceable, ≥50,000 hours at 40 °C).
Performance & Memory:
ARM Cortex-A9 quad-core processor.
1 GB RAM.
1 GB non-volatile storage for projects.
Supports up to 500 screens and 4,000 alarms.
Connectivity:
2 × Ethernet ports (10/100Base-T, Auto MDI/MDI-X).
Supports DLR, linear, and star topologies.
2 × USB 2.0 host ports (Type A).
1 × USB 2.0 device port (Type B).
SD card slot (compatible with 1784-SDx cards).
Power & Battery:
Power input: 24V DC SELV/PELV compliant.
Battery: CR2032 lithium coin cell (user-replaceable, ~4-year life).
Environmental Ratings:
Operating temperature: 0–55 °C.
Storage temperature: –25 to 70 °C.
Humidity: 5–95% non-condensing.
Shock resistance: 15 g (operating), 30 g (non-operating).
Vibration resistance: 2 g peak at 57–500 Hz.
