PanelView 5510 Graphic Terminal
SKU: 2715P-T10CD-B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

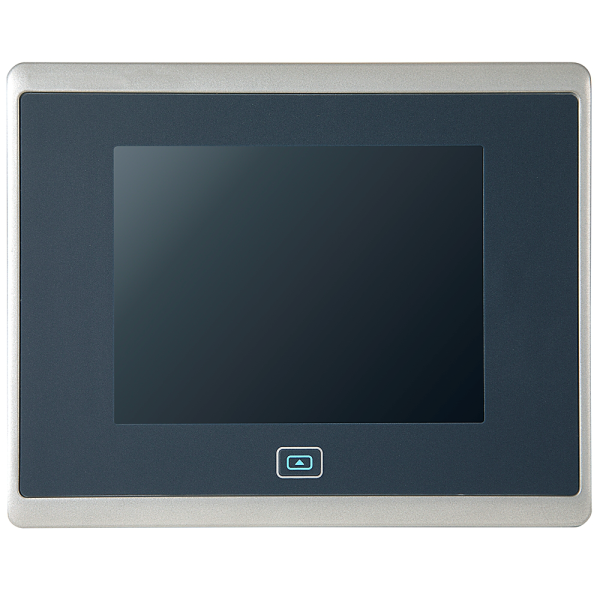

The 10-inch touchscreen-only graphic terminal 2715P-T10CD-B, which is part of Allen-Bradley's PanelView 5510 series, has a brandless bezel (as the suffix "-B" suggests).
This makes it excellent for OEM and private-label applications that require unbranded hardware.
It is intended for smooth interaction with ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers over EtherNet/IP, utilizing Studio 5000 View Designer software.
Buy currently uses Select Automation shop pricing and checkout.
Display & Input:
10.1-inch colour TFT LCD.
Resolution: 800 × 600 pixels (SVGA).
Aspect ratio: 4:3.
Analog resistive touchscreen (rated for 1 million actuations).
LED backlight (non-replaceable, ≥50,000 hours at 40 °C).
Performance & Memory:
1 GB RAM.
1 GB non-volatile storage for user projects.
Supports up to 500 user-defined screens.
Supports up to 4,000 Logix-based alarms (with Studio 5000 View Designer v5 and Logix Designer v32 or higher).
Connectivity:
2 × Ethernet ports (10/100Base-T, Auto MDI/MDI-X).
Supports Device Level Ring (DLR), linear, and star topologies.
2 × USB 2.0 host ports (Type A).
1 × USB 2.0 device port (Type B).
SD card slot (supports 1784-SDx cards).
Power & Battery:
Power input: 24V DC SELV/PELV compliant.
Battery: CR2032 lithium coin cell.
Life: ≥4 years at 25 °C.
Accuracy: ±2 minutes/month.
Environmental Ratings:
Operating temperature: 0–55 °C.
Storage temperature: –25 to 70 °C.
Humidity: 5–95% non-condensing.
Shock: 15 g @ 11 ms (operating), 30 g @ 11 ms (non-operating).
Vibration: 2 g peak at 57–500 Hz.
RoHS compliant.
