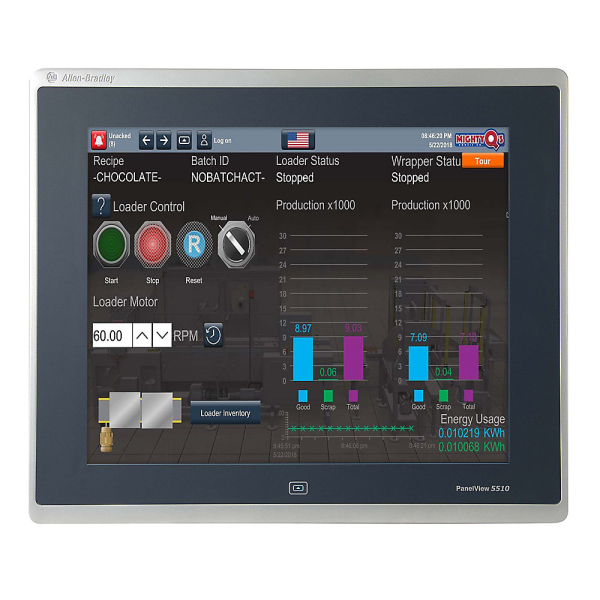

PanelView 5510 Graphic Terminal CC
SKU: 2715P-T10CD-K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Display:
10.1-inch colour TFT LCD.
Resolution: 800 x 600 pixels (SVGA).
Analog resistive touchscreen (without physical keypad).
Conformal Coating:
Defends inside electronics against moisture, dust, and corrosive substances.
Perfect for severe industrial situations.
Memory and Performance:
1 GB RAM.
1 GB of non-volatile storage for user programs.
It supports up to 500 screens and 4,000 Logix-based alerts.
Controller Integration:
Compatible with the ControlLogix 5570/5580 and CompactLogix 5370/5380/5480.
Uses Studio 5000 View Designer software.
Connectivity:
2 Ethernet ports (10/100Base-T with DLR support).
2x USB 2.0 host ports (Type A).
1 USB 2.0 device port (Type B).
SD card slot for data storage and transmission.
Power and Battery:
24V DC input (SELV/PELV-compliant).
Environmental ratings:
Operating temperature range: 0-55 °C.
Humidity: 5-95% non-condensing.
Shock and vibration-resistant.
RoHS compliant.
Mounting and Design:
Panel mounted with a secure lever system.
Sleek, industrial-grade design for increased durability.
Buy currently uses Select Automation shop pricing and checkout.
Display & Input:
Screen Size: 10.1-inch colour TFT LCD.
Resolution: 800 × 600 pixels (SVGA).
Touchscreen: Analog resistive (no physical keypad).
Backlight: LED, non-replaceable, rated ≥50,000 hours at 40 °C.
Actuation Rating: 1 million presses minimum.
Memory & Processing:
RAM: 1 GB.
User Storage: 1 GB non-volatile memory.
Max Screens: 500 user-defined screens.
Alarms: Up to 4,000 Logix-based alarms per controller (with Studio 5000 View Designer v5 and Logix Designer v32 or higher).
Connectivity:
Ethernet:
2 × 10/100Base-T ports.
Supports Device Level Ring (DLR), linear, and star topologies.
USB:
2 × USB 2.0 host ports (Type A).
1 × USB 2.0 device port (Type B).
SD Card Slot: Supports 1784-SDx cards for external storage.
Power & Battery:
Power Input: 24V DC SELV/PELV compliant.
Battery: CR2032 lithium coin cell.
Life: ≥4 years at 25 °C.
Accuracy: ±2 minutes/month.
Environmental Ratings:
Operating Temp: 0–55 °C.
Storage Temp: –25 to 70 °C.
Humidity: 5–95% non-condensing.
Shock: 15 g @ 11 ms (operating), 30 g @ 11 ms (non-operating).
Vibration: 2 g peak at 57–500 Hz.
Protection: Conformal coating for enhanced durability in corrosive or humid environments.
Certifications: RoHS, CE, UL.
Software & Compatibility:
Programming Software: Studio 5000 View Designer.
Controller Support:
ControlLogix 5570/5580.
CompactLogix 5370/5380/5480.
HTML5 Browser: Supports IP camera streams, embedded web content.
