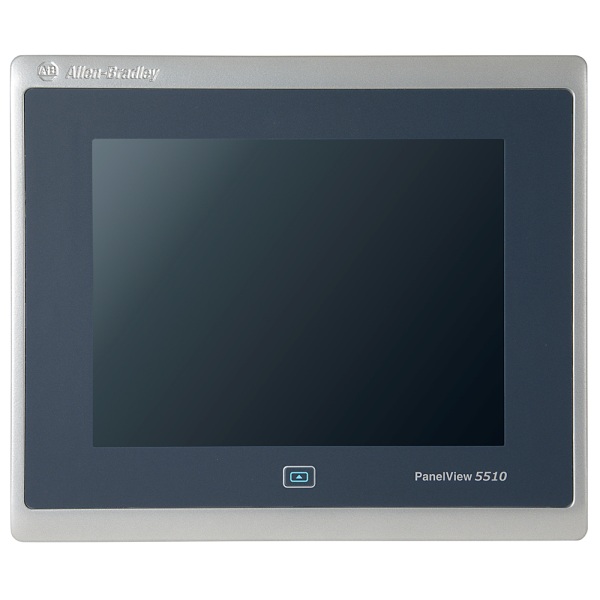

PanelView 5510 Graphic Terminal 10.4-in.
SKU: 2715P-T10CD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Allen-Bradley's 2715P-T10CD PanelView 5510 Graphic Terminal is a 10.4-inch industrial HMI that is designed for high-performance visualization and control in demanding situations.
It's part of the PanelView 5000 line, which includes tight connection with Logix controllers and comprehensive diagnostics.
This model is appropriate for medium-sized applications that require consistent touch input and advanced interaction with Logix systems.
Model: 2715P-T10CD.
Series: PanelView 5510.
Display Type: Touchscreen-only graphic terminal.
Integration: Optimized for ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers.
Software: Runs Studio 5000 View Designer.
Buy currently uses Select Automation shop pricing and checkout.
Display & Input:
Size: 10.4-inch color TFT LCD.
Resolution: 800 × 600 (SVGA), 4:3 aspect ratio.
Touchscreen: Analog resistive, rated for 1 million actuations.
Brightness: ~300 cd/m².
Backlight Life: ≥50,000 hours at 40 °C to half-brightness.
System Specs:
RAM: 1 GB.
Storage: 1 GB nonvolatile memory for projects.
Battery: CR2032 lithium coin cell, 4-year life at 25 °C, ±2 min/month accuracy.
Connectivity:
Ethernet: 2 × 10/100Base-T ports (DLR, linear, star topologies).
USB:
2 × USB 2.0 host ports (Type A).
1 × USB 2.0 device port (Type B).
SD Card Slot: Supports external storage (up to 32 GB).
Environmental Ratings:
Operating Temp: 0–55 °C (32–131 °F).
Humidity: 5–95% non-condensing.
Shock: 15 g @ 11 ms (operating), 30 g @ 11 ms (non-operating).
Vibration: 2 g peak at 57–500 Hz.
Ingress Protection: IP66, NEMA Type 4X, 12, 13.
Features & Integration:
Screens: Up to 500 user-defined screens.
Alarms: Up to 4,000 Logix-based alarms.
Diagnostics: Built-in system diagnostics and message buffering.
Web Browser: HTML5-capable for IP camera streams and web content.
Physical Specs:
Dimensions: Approx. 328 mm × 260 mm (12.9 in × 10.2 in).
Weight: ~3.35 kg (7.4 lb).
Power Supply: 24V DC (range: 18–30V DC), max consumption ~25 W.
