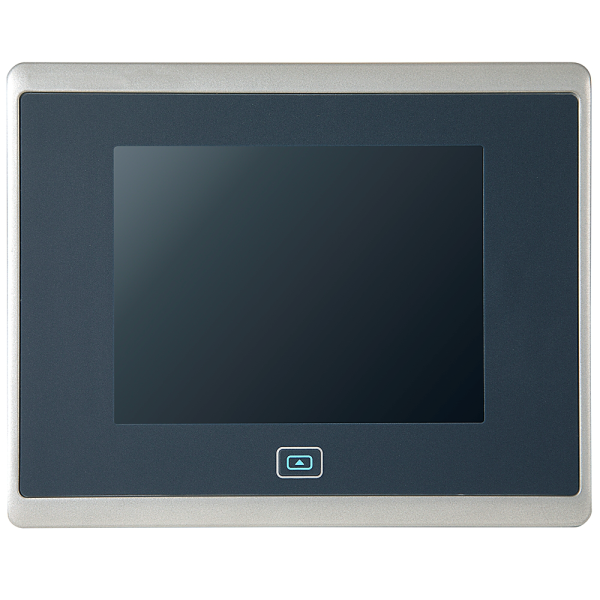

PanelView 5510 Graphic Terminal
SKU: 2715P-T12WD-B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2715P-T12WD-B is a 12.1-inch widescreen graphic terminal from Rockwell Automation's PanelView 5510 series that is optimized for high-performance machine-level visualization.
This type has a stainless-steel bezel, making it suitable for hygienic or corrosive situations such as food processing, pharmaceuticals, and clean rooms.
It features a WXGA touchscreen, dual Ethernet connections for customizable network topologies, and Studio 5000 View Designer for seamless integration with Logix controllers.
With extensive diagnostics, HTML5 browser compatibility, and up to 4,000 Logix-based alarms, it provides strong control and monitoring in challenging industrial environments.
Buy currently uses Select Automation shop pricing and checkout.
Display & Input:
Screen Size: 12.1-inch colour TFT LCD.
Resolution: 1280 × 800 pixels (WXGA).
Aspect Ratio: 16:10 widescreen.
Touchscreen: Analog resistive (rated for 1 million actuations).
Backlight: LED, non-replaceable, ≥50,000 hours at 40 °C.
Bezel: Stainless steel (ideal for hygienic or corrosive environments).
Memory & Performance:
RAM: 1 GB.
User Storage: 1 GB non-volatile memory.
Max Screens: 500 user-defined screens.
Alarms: Up to 4,000 Logix-based alarms per controller (with Studio 5000 View Designer v5 and Logix Designer v32 or higher).
Connectivity:
Ethernet Ports:
2 × 10/100Base-T (Auto MDI/MDI-X).
Supports Device Level Ring (DLR), linear, and star topologies.
USB Ports:
2 × USB 2.0 host ports (Type A).
1 × USB 2.0 device port (Type B).
SD Card Slot:
Supports 1784-SDx cards for external storage.
Power & Battery:
Power Input: 24V DC SELV/PELV compliant.
Battery: CR2032 lithium coin cell.
Life: ≥4 years at 25 °C.
Accuracy: ±2 minutes/month.
Environmental Ratings:
Operating Temperature: 0–55 °C.
Storage Temperature: –25 to +70 °C.
Humidity: 5–95% non-condensing.
Shock Resistance:
Operating: 15 g @ 11 ms.
Non-operating: 30 g @ 11 ms.
Vibration Resistance:
2 g peak at 57–500 Hz.
Ingress Protection: IP66, NEMA Type 4X, 12, 13.
Certifications: RoHS, UL, CE.
Software & Integration:
Programming Software: Studio 5000 View Designer.
Controller Support:
ControlLogix 5570/5580.
CompactLogix 5370/5380/5480.
Web Browser: HTML5-capable (supports IP camera streams, embedded web content).
