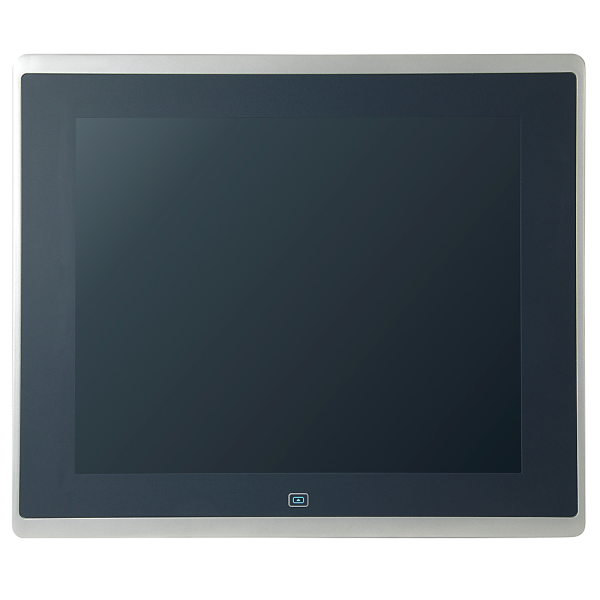

      PanelView 5510 Graphic Terminal

      SKU: 2715P-T15CD-B

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: Allen-Bradley's 2715P-T15CD-B PanelView 5510 Graphic Terminal is a 15-inch touchscreen-only HMI designed for high-performance industrial applications. The "-B" suffix denotes a brandless bezel, which ships without the Allen-Bradley logo or product identification, making it appropriate for OEMs or private-label installations. OEMs or end users that desire complete functionality without branded hardware would love this terminal. Model: 2715P-T15CD-B. Series: PanelView 5510. Display Type: Touchscreen-only graphic terminal. Branding: No logo or product ID on bezel. Software: Runs Studio 5000 View Designer. Integration: Optimized for ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers.
      2715P-T15CD-B
      Alternative image 1
      Display & Input: Size: 15-inch color TFT LCD. Resolution: 1024 × 768 (XGA), 4:3 aspect ratio. Touchscreen: Analog resistive, rated for 1 million actuations. Brightness: ~300 cd/m². Backlight Life: ≥50,000 hours at 40 °C to half-brightness. System Specs: RAM: 1 GB. Storage: 1 GB nonvolatile memory for projects. Battery: CR2032 lithium coin cell, 4-year life at 25 °C, ±2 min/month accuracy. Connectivity: Ethernet: 2 × 10/100Base-T ports (DLR, linear, star topologies). USB: 2 × USB 2.0 host ports (Type A). 1 × USB 2.0 device port (Type B). SD Card Slot: Supports external storage (up to 32 GB). Environmental Ratings: Operating Temp: 0–55 °C (32–131 °F). Humidity: 5–95% non-condensing. Shock: 15 g @ 11 ms (operating), 30 g @ 11 ms (non-operating). Vibration: 2 g peak at 57–500 Hz. Ingress Protection: IP66, NEMA Type 4X, 12, 13. Features & Integration: Screens: Up to 500 user-defined screens. Alarms: Up to 4,000 Logix-based alarms. Diagnostics: Built-in system diagnostics and message buffering. Web Browser: HTML5-capable for IP camera streams and web content. Physical Specs: Dimensions: Approx. 353 mm × 290 mm (13.90 in × 11.42 in). Weight: ~3.72 kg (8.2 lb). Power Supply: 24V DC (range: 18–30V DC), max consumption ~25 W.
