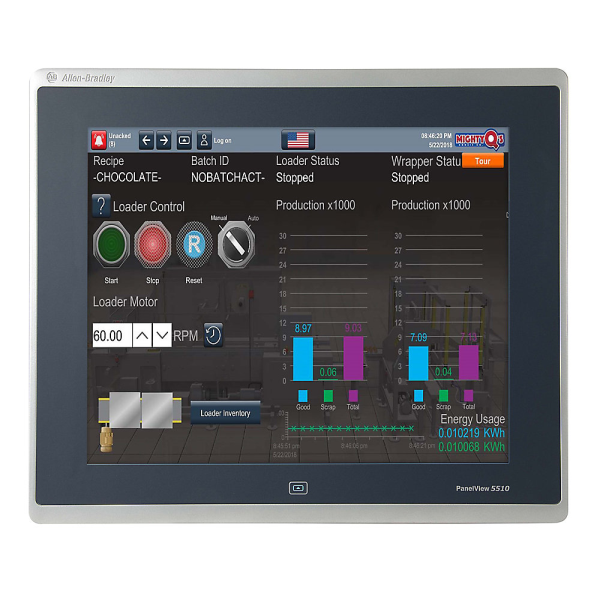

PanelView 5510 Graphic Terminal CC
SKU: 2715P-T19CD-K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Allen-Bradley's 2715P-T19CD-K PanelView 5510 Graphic Terminal CC is a 19-inch touchscreen-only HMI with conformal coating for corrosion, humidity, and dust resistance in industrial applications.
It is part of the PanelView 5000 series, which has sophisticated connectivity with Logix controllers and current visualization capabilities.
This variant is perfect for chemical processing, food industry, and outdoor installations that require a big display area and environmental durability.
Model: 2715P-T19CD-K.
Series: PanelView 5510.
Display Type: Touchscreen-only graphic terminal.
Conformal Coating: Meets GX severity level per ANSI/ISA 71.04-2013.
Software: Runs Studio 5000 View Designer.
Integration: Optimized for ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers.
Buy currently uses Select Automation shop pricing and checkout.
Display & Input:
Size: 19-inch color TFT LCD.
Resolution: 1280 × 1024 (SXGA), 5:4 aspect ratio.
Touchscreen: Analog resistive, rated for 1 million actuations.
Brightness: ~300 cd/m².
Backlight Life: ≥50,000 hours at 40 °C to half-brightness.
System Specs:
RAM: 1 GB.
Storage: 1 GB nonvolatile memory for projects.
Battery: CR2032 lithium coin cell, 4-year life at 25 °C, ±2 min/month accuracy.
Connectivity:
Ethernet: 2 × 10/100Base-T ports (DLR, linear, star topologies).
USB:
2 × USB 2.0 host ports (Type A).
1 × USB 2.0 device port (Type B).
SD Card Slot: Supports external storage (up to 32 GB).
Environmental Ratings:
Operating Temp: 0–50 °C (32–122 °F).
Humidity: 5–95% non-condensing.
Shock: 15 g @ 11 ms (operating), 30 g @ 11 ms (non-operating).
Vibration: 1 g peak at 57–500 Hz.
Ingress Protection: IP66, NEMA Type 4X, 12, 13.
Corrosive Atmosphere: ASTM B845-97 Method K, Severity Level GX.
Features & Integration:
Screens: Up to 500 user-defined screens.
Alarms: Up to 4,000 Logix-based alarms.
Diagnostics: Built-in system diagnostics and message buffering.
Web Browser: HTML5-capable for IP camera streams and web content.
Physical Specs:
Dimensions: 383 mm × 457 mm (15.08 in × 17.99 in).
Cutout Size: Same as above.
Weight: ~7.5 kg (16.5 lb).
Power Supply: 24V DC (range: 18–30V DC), max consumption ~43 W.
