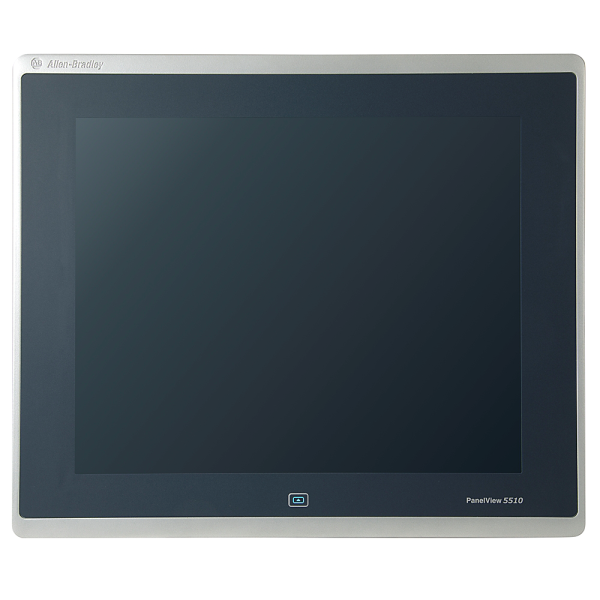

PanelView 5510 Graphic Terminal 19-in.
SKU: 2715P-T19CD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2715P-T19CD PanelView 5510 Graphic Terminal is the largest touchscreen-only HMI in the Allen-Bradley PanelView 5000 series, built for high-performance industrial visualization and tight connection with Logix controllers.
Model: 2715P-T19CD.
Series: PanelView 5510.
Display Type: Touchscreen-only graphic terminal.
Software: Studio 5000 View Designer.
Integration: ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers.
Lifecycle Status: Active.
Buy currently uses Select Automation shop pricing and checkout.
Display & Input:
Size: 19-inch colour TFT LCD.
Resolution: 1280 × 1024 (SXGA), 5:4 aspect ratio.
Touchscreen: Analog resistive, rated for 1 million actuations.
Backlight: LED, non-replaceable, ≥50,000 hours at 40 °C to half-brightness.
System Specs:
RAM: 1 GB.
Storage: 1 GB non-volatile memory for projects.
Battery: CR2032 lithium coin cell, 4-year life at 25 °C, ±2 min/month accuracy.
Connectivity:
Ethernet: 2 × 10/100Base-T ports (DLR, linear, star topologies).
USB:
2 × USB 2.0 host ports (Type A).
1 × USB 2.0 device port (Type B).
SD Card Slot: Supports external storage (Cat. No. 1784-SDx cards).
Environmental Ratings:
Operating Temp: 0–55 °C (32–131 °F).
Humidity: 5–95% non-condensing.
Shock: 15 g @ 11 ms (operating), 30 g @ 11 ms (non-operating).
Vibration: 2 g peak at 57–500 Hz.
Certifications: RoHS compliant (including Turkey RoHS).
Features & Integration:
Screens: Up to 500 user-defined screens.
Alarms: Up to 4,000 Logix-based alarms (with Studio 5000 View Designer v5 and Logix Designer v32 or higher).
Diagnostics: Built-in message system with buffer and confirmation.
Web Browser: HTML5-capable for IP camera streams and web content.
Physical Specs:
Dimensions:
Height: 383 mm (15.08 in).
Width: 457 mm (17.99 in).
Power Supply: 24V DC input.
Mounting Accessories: Compatible with 2711P-RMCP mounting levers.
