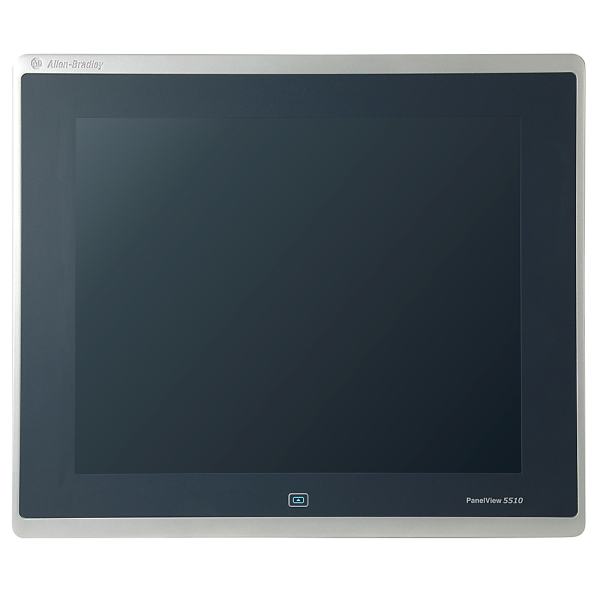

PanelView 5510 Graphic Terminal 6.5-in.
SKU: 2715P-T7CD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
HMI terminal with touchscreen only, part of the PanelView 5510 series.
Designed for high-speed communication with Logix controllers.
Ideal for small-scale industrial applications that require robust visualization.
Integrated with Studio 5000 View Designer for more efficient development.
Buy currently uses Select Automation shop pricing and checkout.
Display & Input:
Screen Size: 6.5-inch colour TFT LCD.
Resolution: 640 × 480 pixels (VGA), 4:3 aspect ratio.
Touchscreen: Analog resistive, rated for 1 million actuations.
Backlight: LED, non-replaceable, ≥50,000 hours at 40 °C to half-brightness.
System Specifications:
RAM: 1 GB.
Storage: 1 GB non-volatile memory for user projects.
Battery: CR2032 lithium coin cell.
Life: ≥4 years at 25 °C.
Accuracy: ±2 minutes/month.
Replaceable (Allen-Bradley part number 2711P-RY2032).
Connectivity:
Ethernet:
2 × 10/100Base-T ports.
Supports Device Level Ring (DLR), linear, and star topologies.
USB Ports:
2 × USB 2.0 host (Type A).
1 × USB 2.0 device (Type B).
SD Card Slot:
Supports external storage via 1784-SDx cards.
Features & Capabilities:
Controller Support:
ControlLogix 5570/5580.
CompactLogix 5370/5380/5480.
Screens: Up to 500 user-defined screens.
Alarms: Up to 4,000 Logix-based alarms (with View Designer v5 and Logix Designer v32 or higher).
Diagnostics: Built-in message system with buffer and confirmation.
Web Browser: HTML5-capable for IP camera streams and web content.
Touch Gestures: Supports tap, swipe, and other runtime interactions.
Environmental Ratings:
Operating Temperature: 0–55 °C (32–131 °F).
Storage Temperature: –25 to +70 °C (–13 to +158 °F).
Humidity: 5–95% non-condensing.
Shock:
Operating: 15 g @ 11 ms.
Non-operating: 30 g @ 11 ms.
Vibration: 2 g peak at 57–500 Hz.
Certifications: RoHS compliant.
