      PanelView 5510 Graphic Terminal

      SKU: 2715P-T7WD-B

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: The 2715P-T7WD-B PanelView 5510 Graphic Terminal is a high-performance touchscreen-only HMI from Allen-Bradley's PanelView 5000 series. The "-B" suffix denotes a brandless bezel, which ships without the Allen-Bradley logo or product identification, making it appropriate for OEMs or private-label installations. Model: 2715P-T7WD-B. Series: PanelView 5510. Display Type: Touchscreen-only graphic terminal. Branding: No logo or product ID on bezel. Software: Studio 5000 View Designer. Controller Integration: ControlLogix 5570/5580 and CompactLogix 5370/5380/5480. Lifecycle Status: Active.

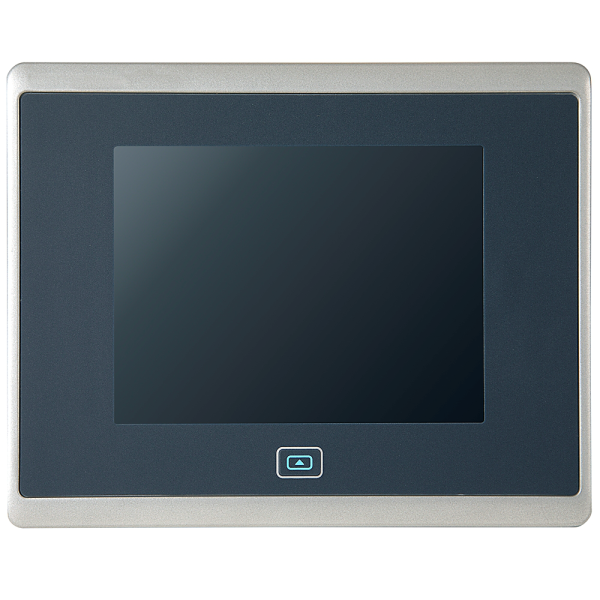

      2715P-T7WD-B
      Alternative image 1
      Display & Input: Screen Size: 6.5-inch colour TFT LCD. Resolution: 640 × 480 (VGA), 4:3 aspect ratio. Touchscreen: Analog resistive, rated for 1 million actuations. Backlight: LED, non-replaceable, ≥50,000 hours at 40 °C to half-brightness. System Specs: RAM: 1 GB. Storage: 1 GB non-volatile memory for user projects. Battery: CR2032 lithium coin cell. Life: ≥4 years at 25 °C. Accuracy: ±2 minutes/month. Connectivity: Ethernet Ports: 2 × 10/100Base-T (Auto MDI/MDI-X). Supports DLR, linear, and star topologies. USB Ports: 2 × USB 2.0 host (Type A). 1 × USB 2.0 device (Type B). SD Card Slot: Supports external storage via 1784-SDx cards. Features & Capabilities: Screens: Up to 500 user-defined screens. Alarms: Up to 4,000 Logix-based alarms (with View Designer v5 and Logix Designer v32 or higher). Diagnostics: Built-in message system with buffer and confirmation. Web Browser: HTML5-capable for IP camera streams and embedded content. Touch Gestures: Supports tap, swipe, and runtime interactions. Environmental Ratings: Operating Temp: 0–55 °C (32–131 °F). Humidity: 5–95% non-condensing. Shock: 15 g @ 11 ms (operating), 30 g @ 11 ms (non-operating). Vibration: 2 g peak at 57–500 Hz. Certifications: RoHS compliant.
