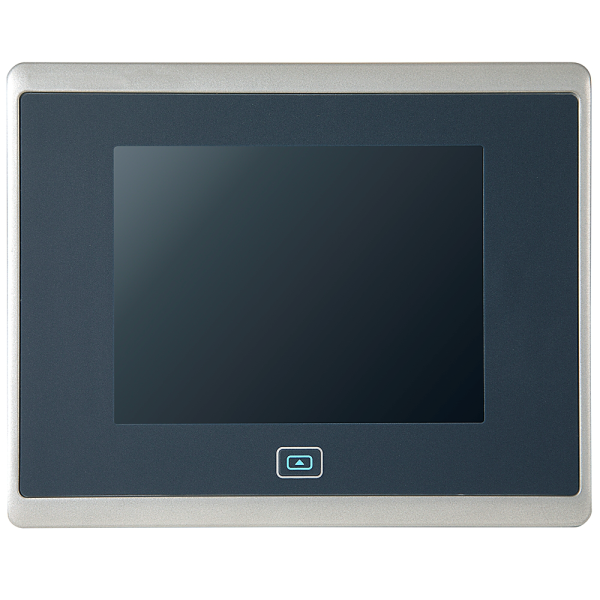

PanelView 5510 Graphic Terminal
SKU: 2715P-T9WD-B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2715P-T9WD-B is a 9-inch widescreen touchscreen HMI from Allen-Bradley's PanelView 5510 series, specifically intended for industrial automation environments that require excellent performance, dependability, and seamless integration.
The "-B" suffix signifies a brandless bezel, making it perfect for OEM or private-label applications that require unbranded hardware.
This terminal has a WVGA display with a 16:9 aspect ratio, which provides sharp images and natural interaction via movements such as tap and swipe.
It can support up to 500 user-defined screens and 4,000 Logix-based alerts and is strongly connected with ControlLogix and CompactLogix controllers using Studio 5000 View Designer software.
It has dual Ethernet ports, USB connectivity, and SD card support, allowing for flexible communication and data management.
Its sturdy construction and IP66/NEMA 4X rating provide reliable performance in harsh industrial environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display:
9-inch WVGA TFT LCD.
Resolution: 800 × 480 pixels.
Analog resistive touchscreen with 1 million actuations.
LED backlight (non-replaceable, ≥50,000 hours at 40 °C).
Memory & Storage:
1 GB RAM.
1 GB non-volatile memory for user projects.
SD card slot (supports 1784-SDx cards).
Connectivity:
2 × Ethernet ports (10/100Base-T, Auto MDI/MDI-X).
Supports DLR, linear, and star topologies.
2 × USB 2.0 host ports (Type A).
1 × USB 2.0 device port (Type B).
Battery:
CR2032 lithium coin cell.
Life: ≥4 years at 25 °C.
Accuracy: ±2 minutes/month.
Software Environment:
Studio 5000 View Designer.
HTML5-capable browser for IP camera streams and embedded content.
Supports up to 500 user-defined screens.
Supports up to 4,000 Logix-based alarms (with View Designer v5 and Logix Designer v32 or higher).
Environmental & Certifications:
Operating Temp: 0–55 °C.
Storage Temp: –25 to +70 °C.
Humidity: 5–95% non-condensing.
Shock: 15 g (operating), 30 g (non-operating).
Vibration: 2 g peak at 57–500 Hz.
Ingress Protection: IP66, NEMA Type 4X, 12, 13.
RoHS Compliant.
Mounting & Accessories:
Compatible with 2711P-RMCP mounting levers.
For stainless steel variants (like 2715P-T9WD-BSK), use 2711P-RTMC mounting clips.
