PanelView 5510 Graphic Terminal CC
SKU: 2715P-T9WD-K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

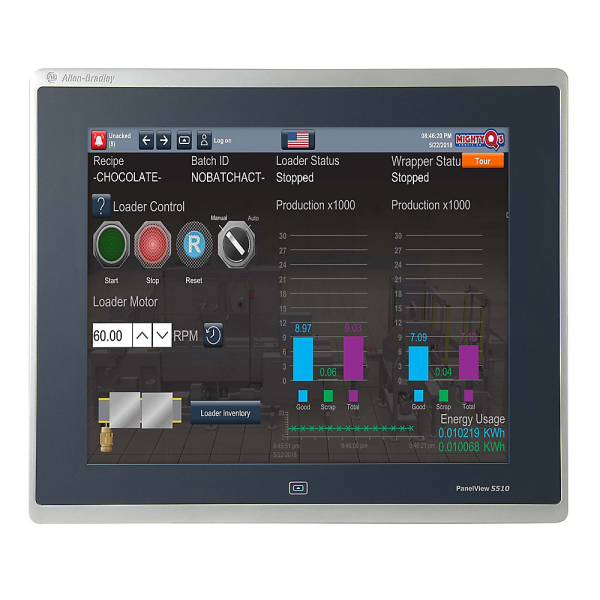

The 2715P-T9WD-K is a 9-inch widescreen touchscreen graphic terminal from Allen-Bradley's PanelView 5510 series, with conformal coating (CC) for additional moisture, dust, and corrosive gas resistance.
The "K" suffix signifies a branded bezel with the Allen-Bradley emblem.
This terminal is designed to work seamlessly with ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers via the Studio 5000 View Designer software.
It can support up to 500 user-defined screens, 4,000 Logix-based alarms, advanced diagnostics, HTML5 browser functionality, and gesture-based touch interface.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display:
9-inch WVGA TFT LCD.
Resolution: 800 × 480 pixels.
Aspect Ratio: 5:3.
Touchscreen: Analog resistive, rated for 1 million presses.
Backlight: LED, non-replaceable, ≥50,000 hours at 40 °C.
Memory & Storage:
1 GB RAM.
1 GB non-volatile storage.
SD card slot (supports 1784-SDx cards).
Connectivity:
2 × Ethernet ports (10/100Base-T, Auto MDI/MDI-X).
2 × USB 2.0 host ports (Type A).
1 × USB 2.0 device port (Type B).
Power Supply:
24V DC nominal (range: 18–30V DC).
Max consumption: 24 W.
Battery:
CR2032 lithium coin cell.
Life: ≥4 years at 25 °C.
Accuracy: ±2 minutes/month.
Environmental & Certifications:
Conformal Coating: Protects internal circuitry from harsh conditions.
Operating Temp: 0–55 °C.
Storage Temp: –25 to +70 °C.
Humidity: 5–95% non-condensing.
Shock: 15 g @ 11 ms (operating), 30 g @ 11 ms (non-operating).
Vibration: 2 g peak at 57–500 Hz.
Ingress Protection: IP66, NEMA Type 4X, 12, 13.
Certifications: UL Type 12, 13, 4X; RoHS compliant.
