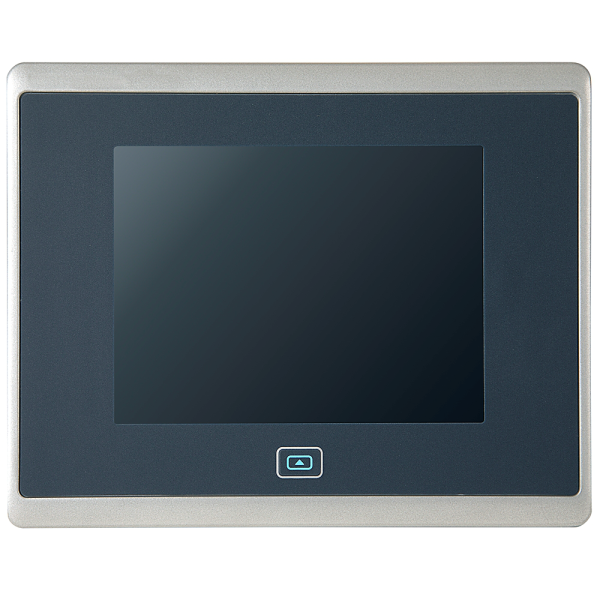

PanelView 5510 Graphic Terminal 9-in.
SKU: 2715P-T9WD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2715P-T9WD is a 9-inch widescreen graphic terminal from Allen-Bradley's PanelView 5510 series, intended for high-performance machine visualization and control.
It has a WVGA touchscreen display with a 16:9 aspect ratio, allowing for easy interaction with movements like tap and swipe.
It is designed to integrate seamlessly with Logix controllers and can enable comprehensive diagnostics, real-time data monitoring, and up to 500 user-defined panels.
Its two Ethernet ports, USB connectivity, and SD card support allow for flexible communication and data management.
The device is designed for industrial situations, with IP66 and NEMA 4X/12/13 classifications, and it performs dependably in temperatures ranging from 0 to 55 °C.
Its sturdy architecture, paired with Studio 5000 View Designer software, makes it excellent for modern automation systems that demand precision, scalability, and user-friendly interfaces.
Model: 2715P-T9WD.
Series: PanelView 5510.
Display Type: Touchscreen-only graphic terminal.
Software: Studio 5000 View Designer.
Integration: Optimized for ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers.
Lifecycle Status: Active.
Use Case: Ideal for machine-level control, diagnostics, and visualization in industrial automation.
Buy currently uses Select Automation shop pricing and checkout.
Display & Input:
Screen Size: 9-inch wide-format TFT LCD.
Resolution: 800 × 480 pixels (WVGA), 16:9 aspect ratio.
Touchscreen: Analog resistive, rated for 1 million actuations.
Backlight: LED, non-replaceable, ≥50,000 hours at 40 °C to half-brightness.
System Specs:
RAM: 1 GB.
Storage: 1 GB non-volatile memory for user projects.
Battery: CR2032 lithium coin cell.
Life: ≥4 years at 25 °C.
Accuracy: ±2 minutes/month.
Connectivity:
Ethernet Ports:
2 × 10/100Base-T (Auto MDI/MDI-X).
Supports DLR, linear, and star topologies.
USB Ports:
2 × USB 2.0 host (Type A).
1 × USB 2.0 device (Type B).
SD Card Slot:
Supports external storage via 1784-SDx cards.
Features & Capabilities:
Screens: Up to 500 user-defined screens.
Alarms: Up to 4,000 Logix-based alarms (with View Designer v5 and Logix Designer v32 or higher).
Diagnostics: Built-in message system with buffer and confirmation.
Web Browser: HTML5-capable for IP camera streams and embedded content.
Touch Gestures: Supports tap, swipe, and runtime interactions.
AS-Interface Safety Protocol Support: Included.
Environmental Ratings:
Operating Temp: 0–55 °C (32–131 °F).
Storage Temp: –25 to +70 °C (–13 to +158 °F).
Humidity: 5–95% non-condensing.
Shock: 15 g @ 11 ms (operating), 30 g @ 11 ms (non-operating).
Vibration: 2 g peak at 57–500 Hz.
Ingress Protection: IP66, NEMA Type 4X, 12, 13.
Certifications: UL Type 12, 13, 4X; RoHS compliant.
