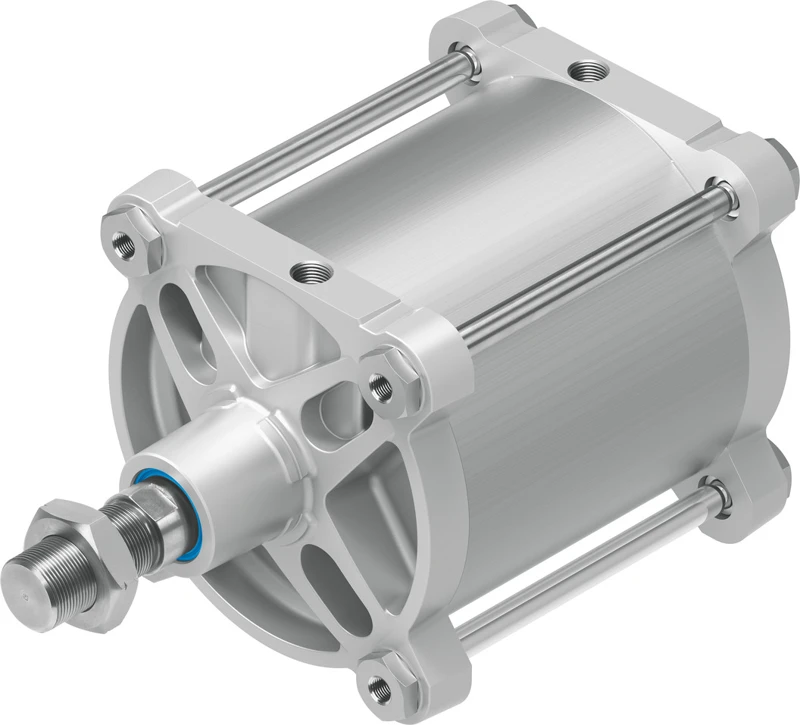

ISO cylinder, DSBG-...-250- -
SKU: 2732003
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBG, ISO 15552
• Stroke 1 mm ... 2250 mm
• Piston diameter 250 mm
• Piston rod thread M42x2, M42, M36x2, M30x2, M30, M27x2, M27, M24
• Based on standard ISO 15552
• Cushioning Elastic cushioning rings/plates at both ends, Pneumatic cushioning, adjustable at both ends
• Mounting position optional
• Variants: Extended male piston rod thread, Piston rod with female thread, Custom thread on the piston rod, Extended piston rod, High corrosion protection, Through piston rod, Heat-resistant seals max. 120°C, Screwed-on swivel mounting position, Spacer bolt on end cap side, Spacer bolt on both sides, Spacer bolt on bearing cap side, Variable spacer bolt length, Shortened male piston rod thread, Piston rod at one end, For proximity switch
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinders DSBG, ISO 15552
• Standards-based cylinders to ISO 15552 (corresponds to the withdraw standards ISO 6431, DIN ISO 6431, VDMA24562, NFE49003.1 and UNI 10290)
• Sturdy tie rod design
• Double-acting
• For contactless position sensing
• Optionally with protection against rotation
• EX4: for use in potentially explosive areas
• Extensive range of accessories makes it possible to install the cylinder virtually anywhere
• Three types of cushioning available: Elastic cushioning: elastic cushioning rings/plates at both ends, PPS cushioning: pneumatic cushioning, self-adjusting at both ends, PPV cushioning: pneumatic cushioning, adjustable at both ends
