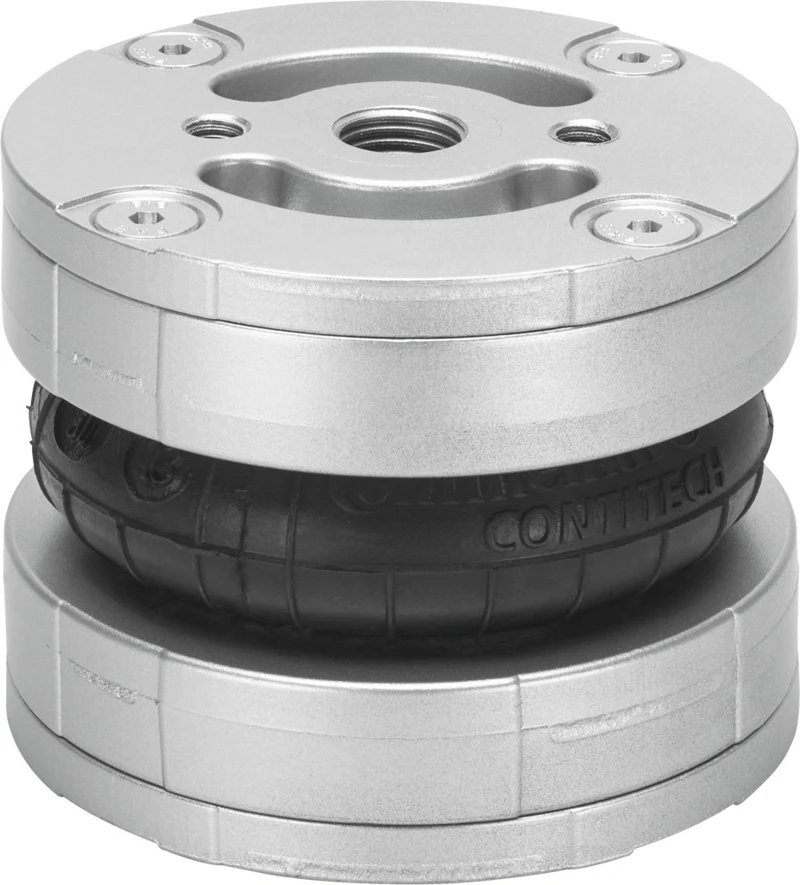

Bellows cylinder, EB-80-20
SKU: 2748903
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Bellows cylinders EB
• Size 80
• Required installation diameter 95 mm
• Stroke 20 mm
• Max. extended height 70 mm
• Max. angle of inclination 10 deg
• Max. offset 5 mm
• Min. installation height 50 mm
• Mode of operation Single-acting
• Symbol 00991205
• Operating pressure 0 bar ... 8 bar
• Operating medium Compressed air to ISO 8573-1:2010 [-:-:4]
• Pneumatic connection G1/4
Buy currently uses Select Automation shop pricing and checkout.
Bellows cylinder EB
• Drive element or air spring element for use in rough, dusty environmental conditions
• Use as a spring element or for reducing oscillations
• Single- or double-bellows cylinder
• High forces with a short stroke
• Uniform movement: no stick-slip effect
• Use in dusty environments or in water
• Maintenance-free
