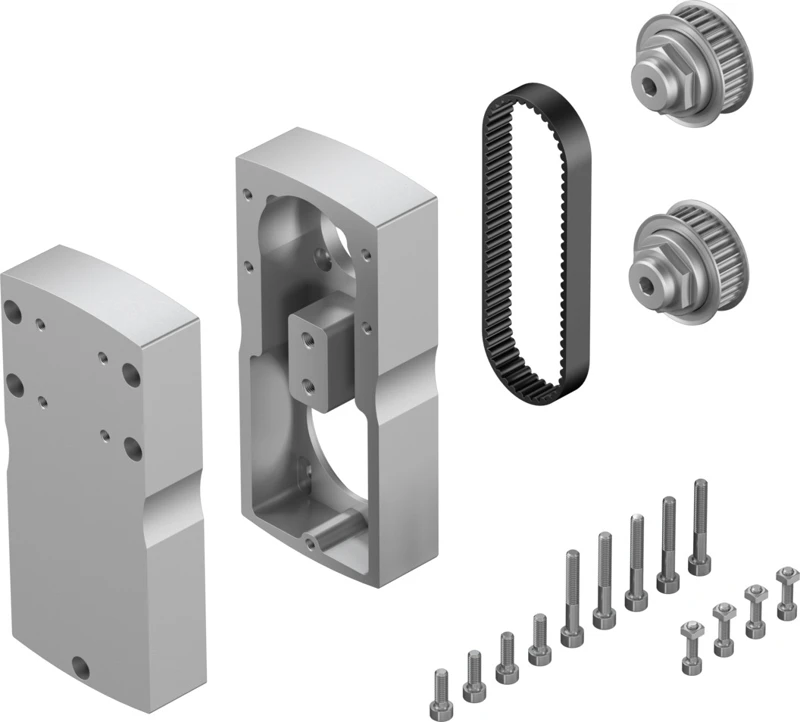

Parallel kit, EAMM-U-86-D50-60G-102

Specifications • Parallel kits EAMM-U-...-D/S • Permissible axis/motor combinations with electric cylinder ESBF • Size 86 • Mounting position optional • Gear unit ratio 1:1 • Max. rotational speed 5000 rpm • LABS (PWIS) conformity VDMA24364 zone III • Storage temperature -25 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature -10 °C ... 60 °C • Mass moment of inertia 175 kgmm² • Frictional torque independent of load 0.25 Nm • Transmittable torque 9.5 Nm • Product weight 2510 g • Interface code, actuator D50B • Interface code, motor in 60G • Note on materials RoHS-compliant
