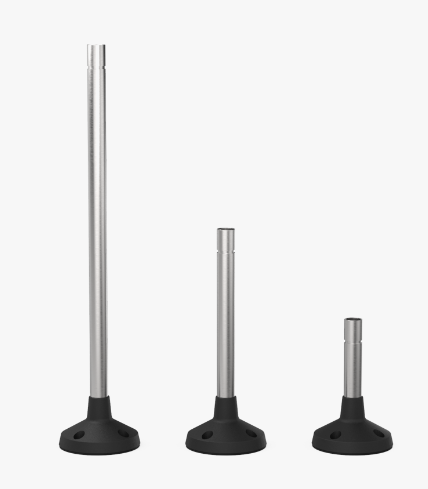

      BR50-S400 Stativ 400mm mit Fuß BR50-S400 tube 400mm w. plinth

      SKU: 28250150040

      Out of stock

      Availability: Out of Stock

      Short Description
      Intense BR50-S400 Mounting Stand With Plinth: BR 50 Signal Tower 400 mm Stainless steel stand and plastic plinth with up to 5 modules and 6 lens colours. They can be combined as desired by simply connecting them, even in the field. Can be used wherever where machine statuses and warning signals are required. Modular design with durable housing for all indoor and outdoor applications in harsh environments. Modules include continuous lights with LEDs, blinking lights (1.5 Hz), flashing lights, and an 85 dB (A) sounder. The flexible building kit structure ensures convenient handling. Mechanical and electronic components are separated, resulting in a more stable structure that is less sensitive to vibration. Many various types can be fixed using tubular stands, tubes, or direct attachment. The light source includes two distinct LED strands and is a monitored module for increased safety. If one strand fails, the alarm contact is engaged, but the second strand continues to illuminate. High level of protection IP 54 (optional IP 65). Each module's dimensions are Ø 54 x 63 mm.
      28250150040
      Alternative image 1
      Technical Data: Housing material: Stainless steel tube and PA 6 (Polyamid) plinth. Max. Relative Humidity: 90 %. AS-i: no. IO-Link: no. M12-connection: no. Monitored: no. Dimensions (H x W x D) mm: 410 mm x 70 mm x 70 mm. Weight (without packaging) kg: 0,24 kg. ETIM-Class: EC001259.
