BR50-T100 Rohr 100mm m. Winkel BR50-T100 tube 100mm bracket
SKU: 28250160010
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Intense BR50-T100 Tube With Thread and Bracket:

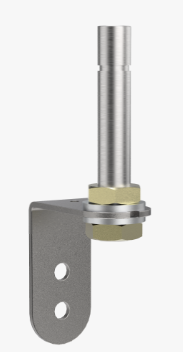

BR 50 Signal Tower 100 mm Stainless steel tube with thread and 2 nuts with a bracket.
with up to 5 modules and 6 lens colours.
They can be combined as desired by simply connecting them, even in the field.
Can be used wherever where machine statuses and warning signals are required.
Modular design with durable housing for all indoor and outdoor applications in harsh environments.
Modules include continuous lights with LEDs, blinking lights (1.5 Hz), flashing lights, and an 85 dB (A) sounder.
The flexible building kit structure ensures convenient handling.
Mechanical and electronic components are separated, resulting in a more stable structure that is less sensitive to vibration.
Many various types can be fixed using tubular stands, tubes, or direct attachment.
The light source includes two distinct LED strands and is a monitored module for increased safety.
If one strand fails, the alarm contact is engaged, but the second strand continues to illuminate.
High level of protection IP 54 (optional IP 65).
Each module's dimensions are Ø 54 x 63 mm.
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Housing material: Stainless steel tube and bracket.
Max. Relative Humidity: 90 %.
AS-i: no.
IO-Link: no.
M12-connection: no.
Monitored: no.
Dimensions (H x W x D) mm: 160 mm x 67 mm x 35 mm.
Weight (without packaging) kg: 0,18 kg.
ETIM-Class: EC001155.
