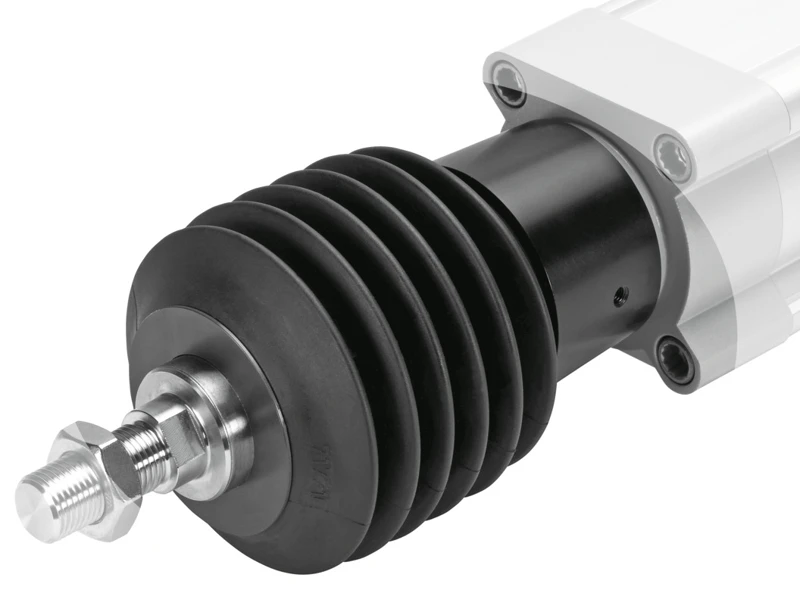

Bellows kit, EADB-V2-40-S201-300

Specifications • Electric cylinders ESBF, with spindle drive • Accessories, Bellows kit EADB • Outside diameter 57 mm • Size 40 • Stroke range 201 mm ... 300 mm • Piston rod extension 90 mm • Design Round • Mounting position optional • Design Bellows kit, With ducted exhaust air • Corrosion resistance class CRC 3 - high corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Media resistance Dust, Chips, Oils, Grease, Petrol • Degree of protection IP65, To IEC 60529 • Ambient temperature -10 °C ... 80 °C
