Bellows kit, EADB-V2-50-S10-100
SKU: 2828839
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Electric cylinders ESBF, with spindle drive
• Accessories, Bellows kit EADB
• Outside diameter 93 mm
• Size 50
• Stroke range 10 mm ... 100 mm
• Piston rod extension 46 mm
• Design Round
• Mounting position optional
• Design Bellows kit, With ducted exhaust air
• Corrosion resistance class CRC 3 - high corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Media resistance Dust, Chips, Oils, Grease, Petrol
• Degree of protection IP65, To IEC 60529
• Ambient temperature -10 °C ... 80 °C
Buy currently uses Select Automation shop pricing and checkout.
Bellows kit EADB

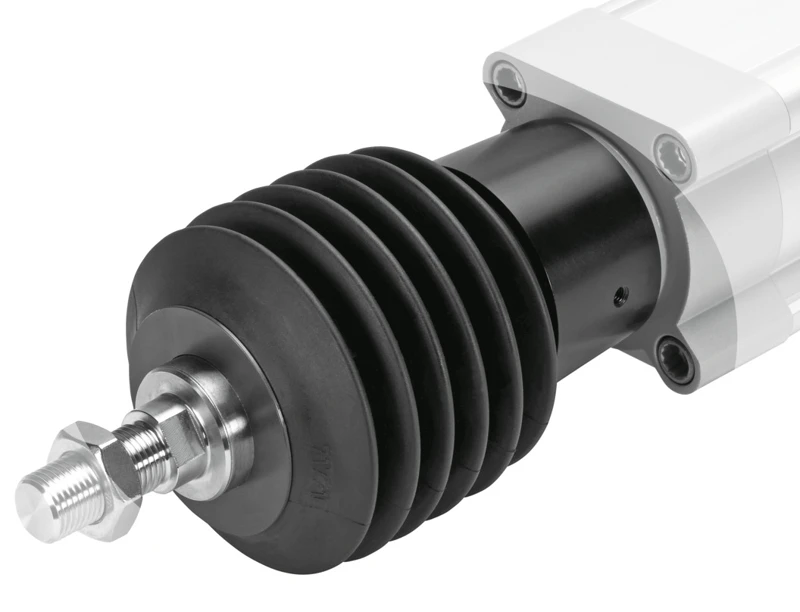

• The sturdy protective bellows for the piston rods of electric cylinders such as ESBF or EPCO protects against harsh environmental influences.
