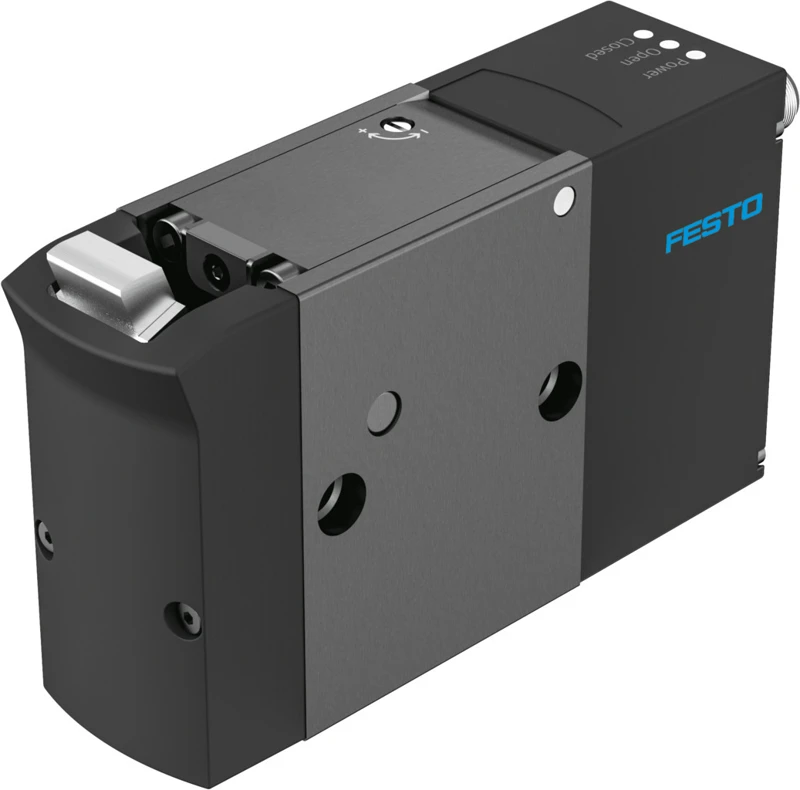

Stopper cylinder, EFSD-20-PV-M12
SKU: 2942445
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Stopper cylinder EFSD
• Design Electric stopper cylinder
• Size 20
• Mounting position optional
• Position detection With Hall sensor
• Symbol 00995845
• Corrosion resistance class CRC 1 - Low corrosion stress
• Ambient temperature -10 °C ... 60 °C
• Storage temperature -20 °C ... 60 °C
• Relative air humidity 0 - 95%, Non-condensing
• Cushioning length 11.5 mm
• Product weight 420 g
• Max. cycle frequency 0.33 Hz
• Type of mounting Via mounting kit
Buy currently uses Select Automation shop pricing and checkout.
Stopper cylinder EFSD
• Gentle stopping made easy: You can use the electric stopper for conveyed goods weighing between 0.25 and 100 kg without an additional motor controller by connecting it directly to the PLC.
• The power supply, communication and logic processing are conducted directly by the device itself.
• Fast and simple set-up of transfer systems without compressed air
• For stopping conveyed goods weighing between 0.25 kg and 100 kg
• Status and error messages for visual error diagnostics
• Controlled via digital I/O of a higher-order controller, e.g. terminal CPX, makes commissioning easier
• Mounting interface for ease of mounting on transfer systems
• Adjustable cushioning power
