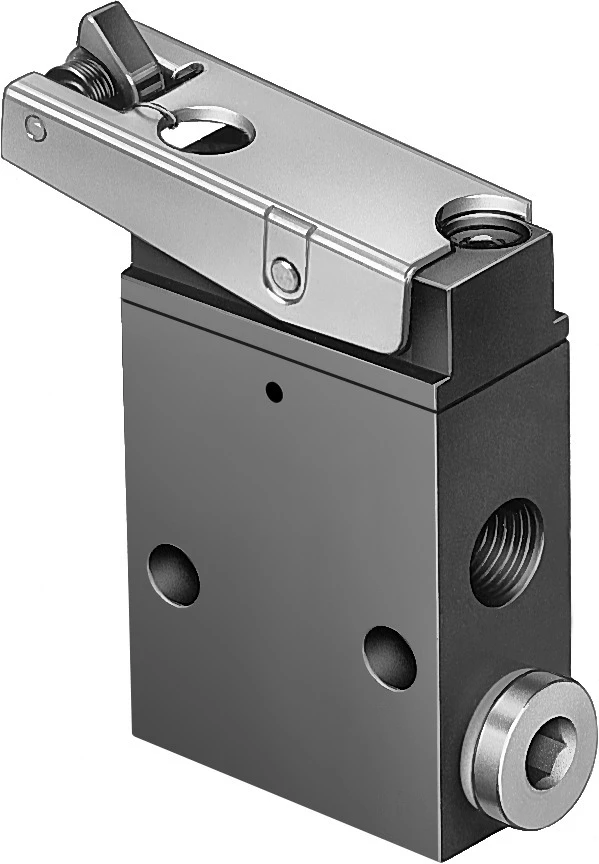

Toggle lever valve, LOS-3-1/8

Specifications • Valves, mechanically actuated, toggle lever valve • Valve function 3/2 open, single solenoid • Type of actuation Mechanical • Standard nominal flow rate (standardised to DIN 1343) 175 l/min • Pneumatic working port G1/8 • Operating pressure 0.35 MPa ... 0.8 MPa • Operating pressure 3.5 bar ... 8 bar • Design Poppet seat • Type of reset Mechanical spring • Nominal size 3.5 mm • Exhaust-air function With flow control option • Sealing principle Soft • Mounting position optional
