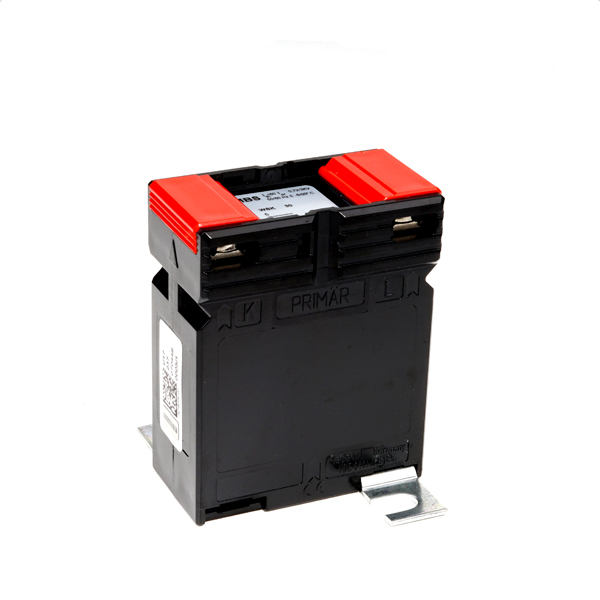

WSK 30 20/5A PRIMARY WOUND CT cl 1
SKU: 30028
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
E is the isolation class.
Operating voltage maximum: 0.72 kV.
Frequency nominal: 50 Hz (others upon request).
Thermal short-time current nominal: Ith = 60 x In.
FS 5, up to 1500 A nominal current, is the over-current limiting factor.
MBS AG current transformers completely adhere to IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Primary wound current transformers (5A secondary - class 1),
WSK 30 primary wound current transformers,
MODEL WSK 30,
RATIO 20/5A,
DESCRIPTION Primary wound current transformer,
CLASS 1,
VA 5,
DIMENSIONS (MM) (H) 79 x (W) 61 x (D) 35
